COMPUTERIZED DIGITAL TOUCH SCREEN VICKERS HARDNESS TESTER | VHT-DT SERIES-V2

Features:

1. 1. Auto measurement of the four vertices of the indentation.
   2. Double optical channel (eyepiece & camera port).

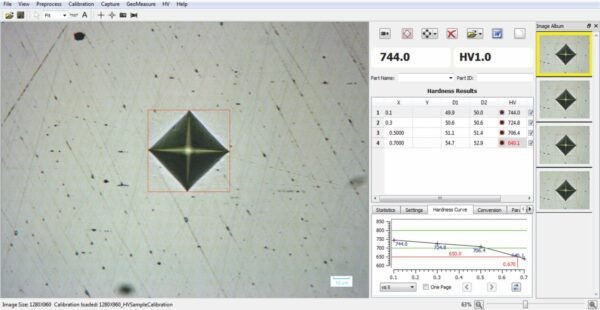

   3. Automatically generate Word or Excel Document or PDF report which include each individual curve graph & statistical value.
   4. Test force is automatically display on LCD screen.
   5. DIGITAL EYEPIECE : Equipped with 10x Digital Eyepiece to directly measure the length of the diagonal. The hardness value can be displayed directly and there is no need to enter the length of the diagonal.
   6. ILLUMINATION SYSTEM : Halogen illumination unit with adjustable intensity gives very clear images and can be also used as a simple microscope. Halogen illumination unit enter stand by mode after a certain period of inactivity which gives it a long service life and low power consumption.
   7. DATA OUTPUT : Equipped with built is thermal printer to take the print out the hardness result USB port is also available to get the data in pendrive
   8. CAMERA PORT : Machine equipped with dual optical channel, one optical channel for 10X eyepiece and another optical channel is for camera by which machine can be upgraded into computerized model. Both optical channel works simultaneously.
   9. TURRET MECHANISM : Equipped with manual turret mechanism. The position of the indenter and the objective lens can be automatically switched manually.
   10. TEST FORCE : Wide range of test force can be selected with external force selection knob. The test force is automatically displayed on the 7 inch LCD touch display.
   11. LCD TOUCH SCREEN PANEL : 7 Inch LCD touch screen can visually display the hardness value, conversion hardness, test force, dwell time, statistical data, upper & lower limit and brightness of optical system.
   12. EMERGENCY SWITCH : Equipped with emergency stop switch.
