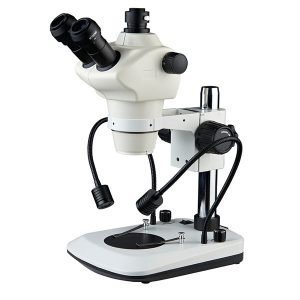

TZM-7045T-T1
TZM-7045T-T1
Provides high quality optics and a durable and reliable operating mechanism.
Complete accessories, diverse combination configuration.
Meet the high precision requirements of modern biology, medicine, scientific research, modern electronics industry online testing and other scientific and technological industries.
| eyepiece | Standard configuration | Auxiliary objective lens 0.5X | Auxiliary objective 1.5X | Auxiliary objective 2X | ||||
| Working distance 100mm | Working distance 165mm | Working distance 45mm | Working distance 30mm | |||||
| Magnification | Field of view | Magnification | Field of view | Magnification | Field of view | Magnification | Field of view | |
| 10X/20mm | 7X | 28.6mm | 3.5X | 57.1mm | 10.5X | 19mm | 14X | 14.3mm |
| 45X | 4.4mm | 22.5X | 8.9mm | 67.5X | 3mm | 90X | 2.2mm | |
| 15X/15mm | 10.5X | 21.1mm | 5.25X | 42.8mm | 15.75X | 14.3mm | 21X | 10.7mm |
| 67.5X | 3.3mm | 33.75X | 6.7mm | 101.25X | 2.2mm | 135X | 1.7mm | |
| 20X/10mm | 14X | 14.3mm | 7X | 28.6mm | 21X | 9.5mm | 28X | 7.1mm |
| 90X | 2.2mm | 45X | 4.4mm | 135X | 1.5mm | 180X | 1.1mm | |
| 25X/9mm | 17.5X | 12.9mm | 8.85X | 25.4mm | 26.2X | 8.6mm | 35X | 6.4mm |
| 112.5X | 2.0mm | 56.3X | 4.0mm | 168.8X | 1.3mm | 225X | 1.0mm | |
| 30X/8mm | 21X | 11.4mm | 10.5X | 22.9mm | 31.5X | 7.6mm | 42X | 5.7mm |
| 135X | 1.8mm | 67.5X | 3.6mm | 202.5X | 1.2mm | 270X | 0.9mm | |
| gain | Standard configuration: 7X-45X, optional eyepiece and auxiliary objective can be extended to 3.5X-270X, continuous zoom | |||||||
| eyepiece | Standard configuration: 10X/20mm, large field of view, wide angle, high eye point, convenient for observers wearing glasses | |||||||
| Optional eyepiece | 10X/20mm, 15X/15mm, 20X/10mm, 25X/9mm, 30X/8mm | |||||||
| Observation head | 45° tilt, 360° rotation, 54-76mm pitch; bilateral visibility adjustment (±5) | |||||||
| Hinged binocular | ||||||||
| Objective lens | 0.7X-4.5X continuous zoom, objective lens zoom ratio 6.4:1 to ensure image surface parfocality | |||||||
| Auxiliary objective | Optional 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X | |||||||
| Focus bracket | A1 focusing bracket hand wheel elastic adjustable, lifting range 50mm | |||||||
| Base | B1 column type small flat base , optional other base, see the base parts | |||||||
| illumination | Optional various fluorescent and LED ring lights, see the external light source parts | |||||||
