| MODEL | TRH-150D |
| Display | LCD Display |
| Preliminary test force | 98.07 N (10kgf) |
| Total Test force | 588.4, 980.7,1471 N (60,100,150 kgf) |
| Scales Display | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV |
| Minor load setting | By bar graph indicator (Manual setting) |
| Load Control | Manual |
| Least Count | 0.1 HR |
| Data Output | Mini USB Port |
| Memory | 500 Readings |
| Max. test height | 170mm |
| Depth of throat | 135 mm (from the centre to of indenter) |
| Power Supply | Built in rechargeable battery (Charger AC 240 volts; DC 5V, 1A) |
| Dimension (H x W x L) | 630x238x466mm |
| Net Weight (Approx) | 65 kg |

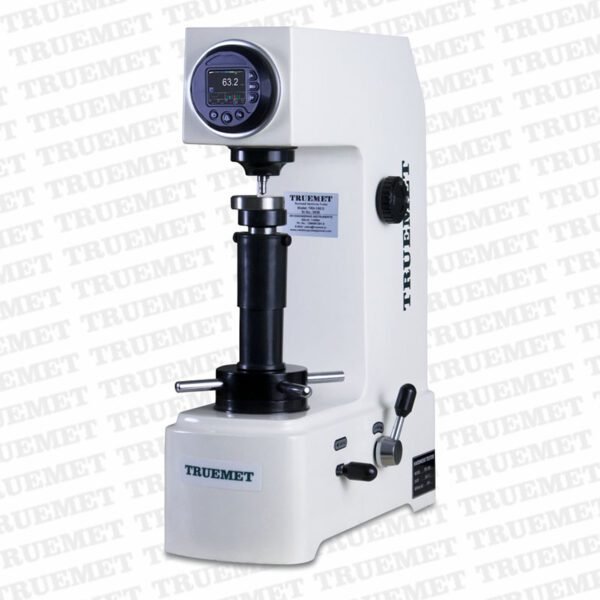

Economical Digital Rockwell Hardness Tester | TRH-150D
Economical Digital Rockwell Hardness Tester | TRH-150D
Features:
-
- Economical Digital Rockwell Hardness Tester.
- No need of external power, digital indicator is powered by built in rechargeable battery.
- Minor load setting by LCD bar graph.
- Tolerance measurement with alarm indication.

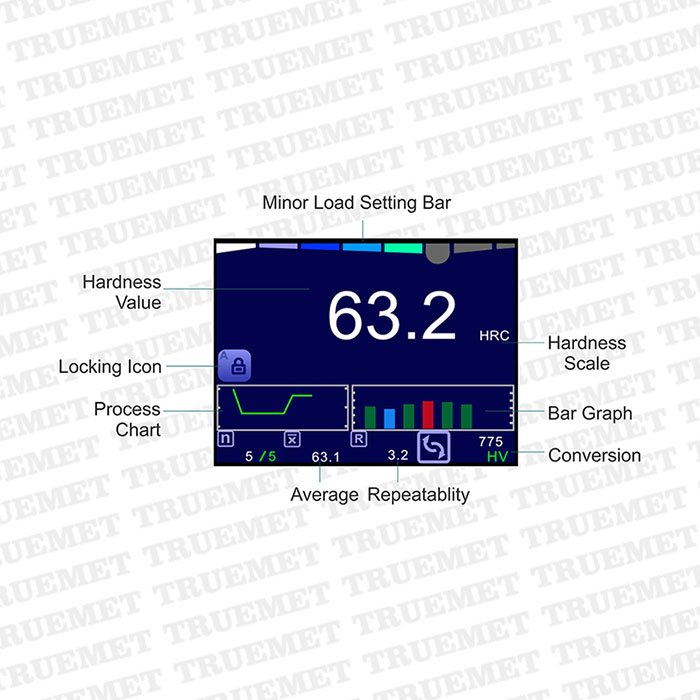

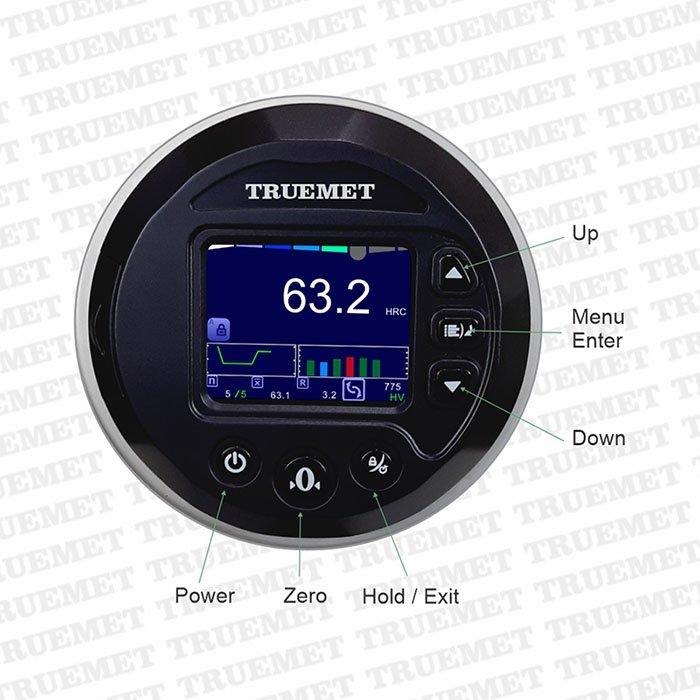

- Easy to read, large Size 320 x 240 TFT LCD display.
- Measurement value can be sent to PC through USB cable (optional).
- Memory of 500 measurement values for browsing and output.
- Set measurement times (2-9) to have average value and difference to max. and min. value.
- Hardness conversion facility available as per ISO-18265 and ASTM-E140 in different scales such as Brinell, Vickers, Knoop, Leeb, Rockwell & Rockwell Superficial.
- Automatic power off.
