| MODEL | TRH-150A |
| Display | Analogue Dial guage |
| Loads (kgf) | 60, 100, 150 |
| Initial Load (kgf) | 10 |
| Least Count | 0.5 HR |
| Max Test Height | 170mm |
| Depth of Throat | 125mm |
| Max. depth of elevating screw below base |
120mm |
| Size of base (approx) | 460x200mm |
| Machine Height (approx) | 620mm |
| Dial Gauge | 100mm |
| Weight (approx) | 65kg |

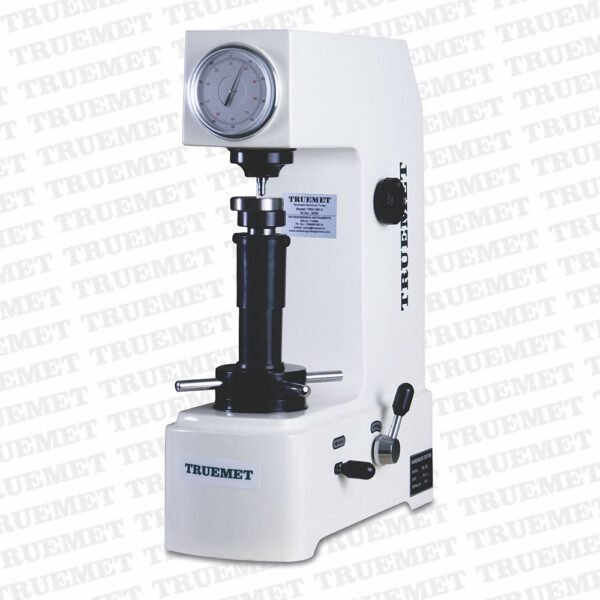

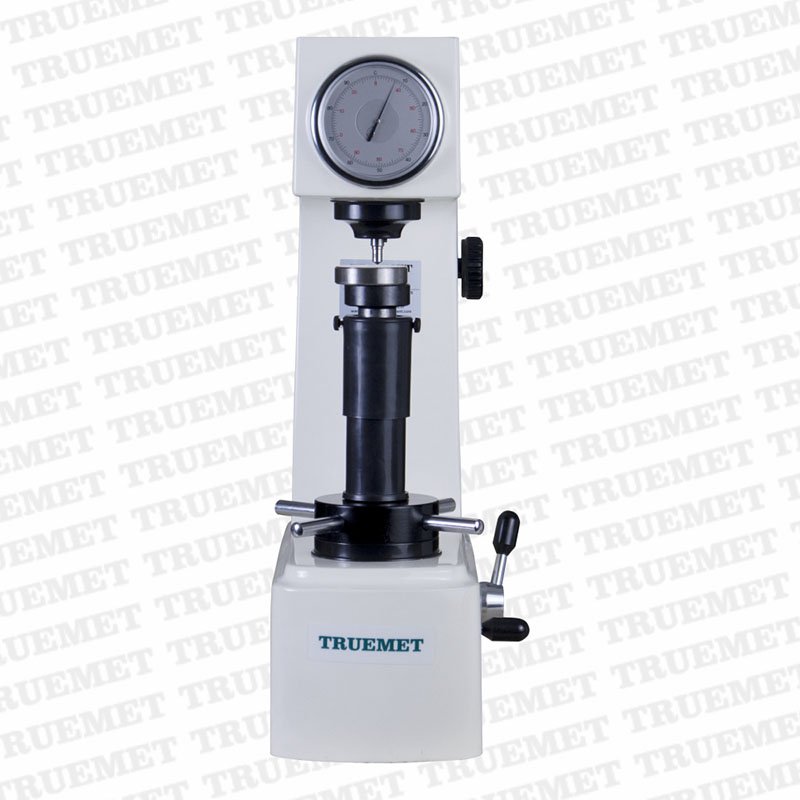

Analogue Rockwell Hardness Tester | TRH-150A
Analogue Rockwell Hardness Tester | TRH-150A
Features:
-
- Analogue Rockwell Hardness Tester.
- Decent design, high testing precision and simple operation.
- Adopted car painting technology. The paint shade do not fade and machine looks like new over year.
- The Elevating screw is guided in a hardened & ground bush, not allowing movement of elevating screw more than 0.05mm when raised to full height.

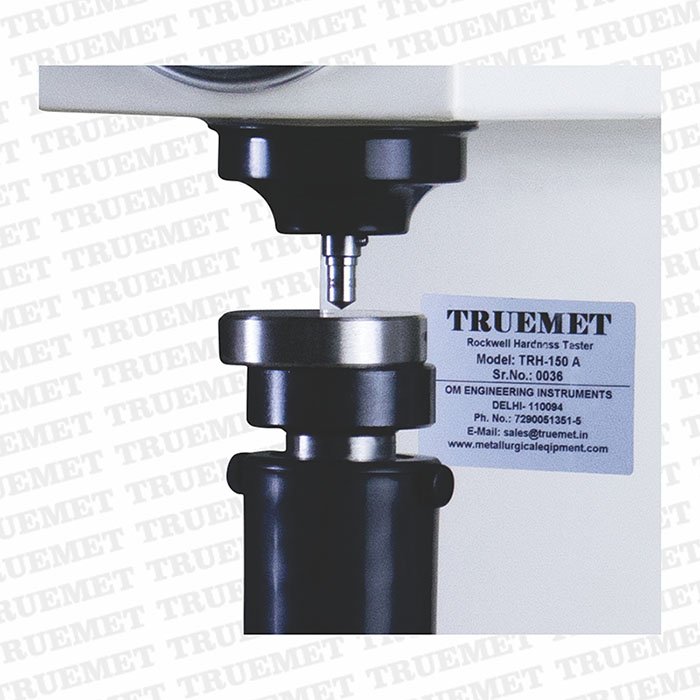

- An non-friction linear movement with almost no clearance is provided for a perfect movement of diamond holder. This enable testing of small diameter pin or ball upto 3mm diameter.

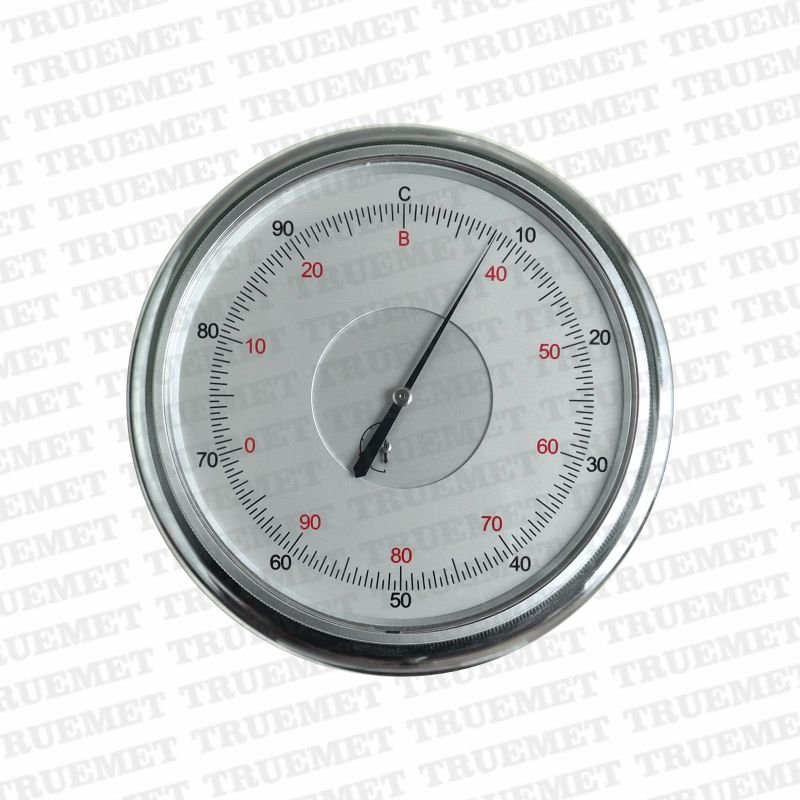

- The machine provided with manual zero setting dial indicator having least count of 0.5 HR and automatic load selection by knob.
