| MODEL | TLRH-Curve | TLRSH-Curve |
| Initial Test Force (N) | 98.07 N (10 KGF) for Rockwell | 29.42 N (3 KGF) for Superficial 98.07 N (10 KGF) for Rockwell |
| Main Test Force (N) | 588.4N (60KGF), 980.7N (100KGF), 1471N (150KGF) | 147.1N (15KGF), 294.2N (30KGF), 441.3N (45KGF),
588.4N (60KGF), 980.7N (100KGF), 1471N (150KGF) |
| Display | 8 inch Touch Screen | |
| LCD touch screen display | Hardness value, Hardness scale, Force time curve, Depth time curve, Total test force, Permanent Indentation depth, Holding time, Upper and lower limit setting value, Last five hardness values, Minimum, maximum and their average, Date, Time, Day. | |
| Load and Unload Mode | Ultra high response speed closed-loop loading control Technology (Loading, Dwell, Uploading) | |
| Conversion Scale | HR (Rockwell), HB (Brinell), HV (Vickers) | |
| Dwell time | 0~99s | |
| Data output | Built-in printer, RS232 interface | |
| Accuracy | ASTM E18, ISO 6508 – 2, IS 1586 (Part 2) | |
| Allow sample height/Throat | 170mm/165mm | |
| Dimension (mm) | 490X165X740 (length x width x height) approx. | |
| Weight | 70 kg approx | |
| Power | 220V AC, 50Hz | |
Load Cell Based Touch Screen Rockwell / Rockwell Cum Superficial Hardness Tester | TLRH-Curve/TLRSH-Curve
Load Cell Based Touch Screen Rockwell / Rockwell Cum Superficial Hardness Tester | TLRH-Curve/TLRSH-Curve
Features:
-
- Load cell based Rockwell Hardness Tester.
- Touch Screen operation.
- Load /Scale selection through touch panel.
- Automatic high-speed response closed-loop sensor loading system.

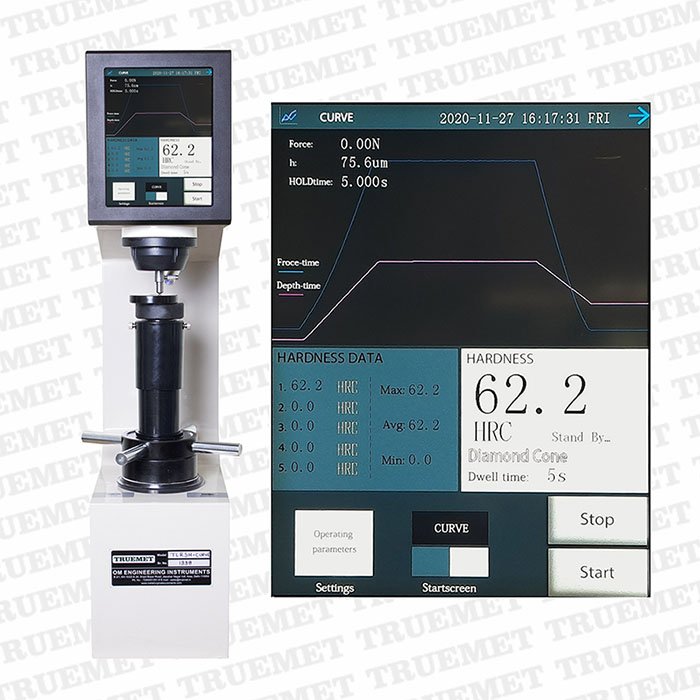

- Real time display of Force – Time, Depth-Time curve.
- Testing cycle starts just after touching the specimen with Indentor (no need to apply initial test load).
- Pass/ Fail Tolerance judgement.
- Hardness Scale Conversion HR, HB, HV.

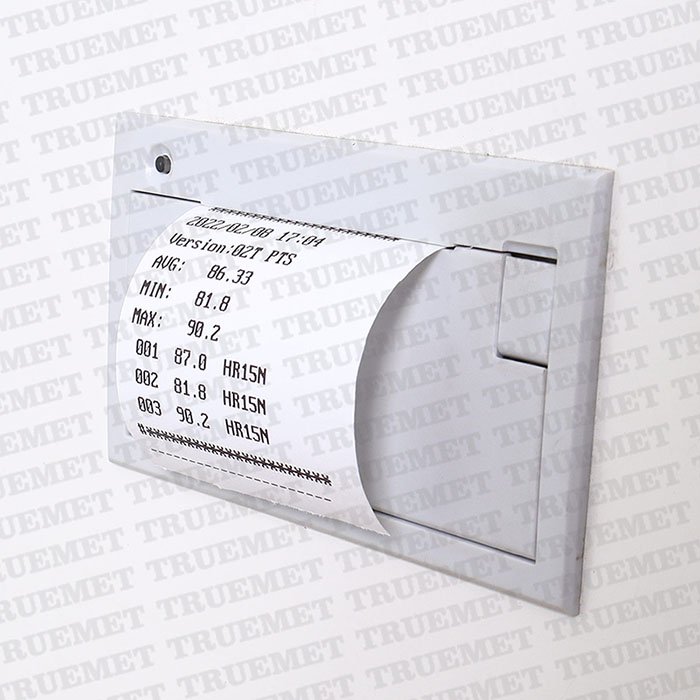

- Built, in thermal printer.

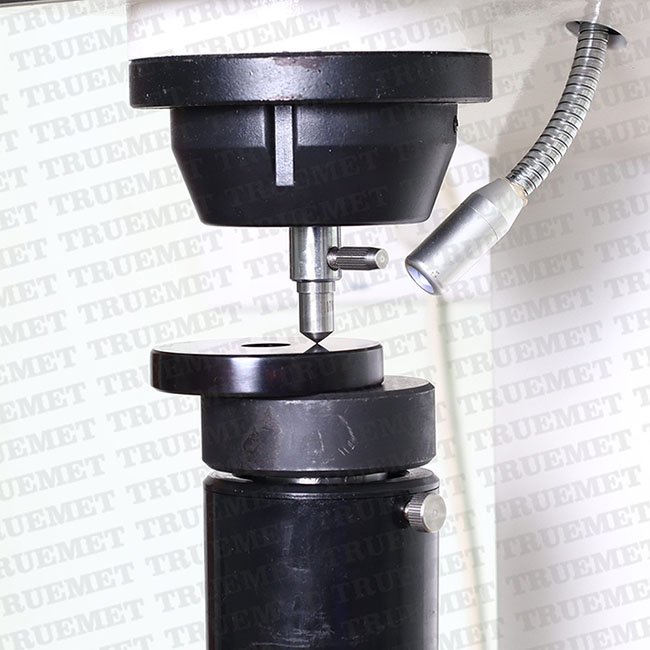

- External illumination light to focus on test surface.
- Permanent depth of penetration display on screen.
