T6024-T1

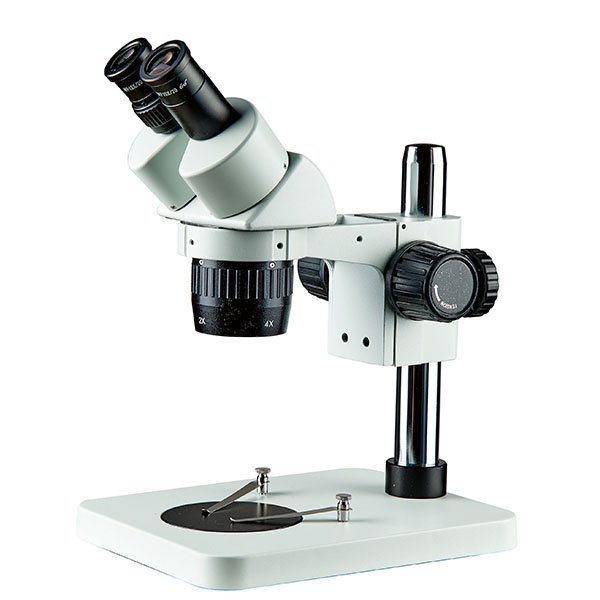

T60 Series Stereo Microscope has two magnification levels(10x/20x, 10x/30x, or 20x/40x). It is easy to operate and it is an ideal microscope for student learning and classroom teaching. It is also a perfect device for viewing jewel, PCB, insects and so on.
Eyepiece | Objective 1X | Objective 2X | Objective 3X | Objective 4X | ||||
Working Distance 100mm | ||||||||
Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | |
10X/20mm | 10X | 20.0mm | 20X | 10.0mm | 30X | 7.5mm | 40X | 5.0mm |
15X/15mm | 12X | 15.0mm | 30X | 7.5mm | 45X | 5.0mm | 60X | 3.3mm |
20X/10mm | 20X | 10.0mm | 40X | 5.0mm | 60X | 3.3mm | 80X | 2.5mm |
Magnification | 20X-40X, 10X-80X with optional eyepieces and objectives | |||||||
Eyepiece | WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses | |||||||
Optional Eyepiece | WF10X/20mm, WF15X/15mm, WF20X/10mm | |||||||
Main Body | Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired | |||||||
| Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters | ||||||||
Objective | 2X/4X, 1X/3X, 1X/2X | |||||||
Focusing Mount | A1 focusing mount with vertical working distance 50mm | |||||||
Stand | B1 pole stand, for more options, please refer to “ACCESSORIES-MICROSCOPE STAND” | |||||||
Illumination | Fluorescent lamp, LED ring light, for more option, please refer to “ACCESSORIES-ILLUMINATOR” | |||||||
