T-7024-T1

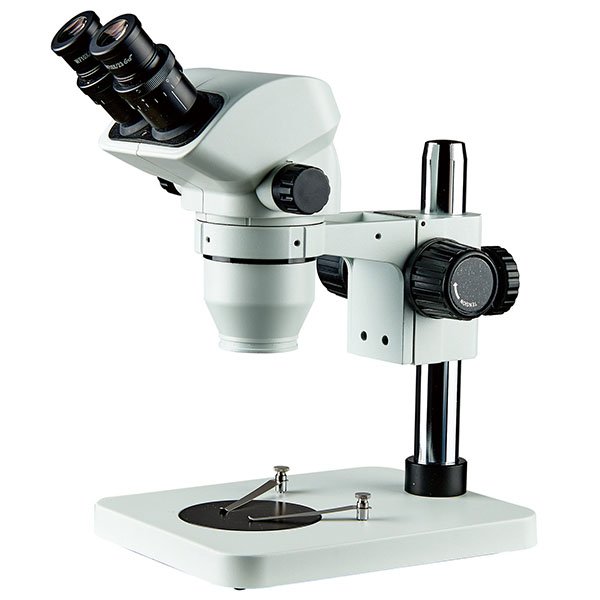

T70 Series Stereo Microscope is fully coated optical system with super high resolution. It offers sharp clear images with extremely great flatness and contrast. With the new ergonomics design and super large field of view, you can use this microscope for long time without fatigue. It is widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurement.
Eyepiece | Objective 1X | Objective 2X | Objective 3X | Objective 4X | ||||
Working Distance 100mm | ||||||||
Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | |
10X/23mm | 10X | 20.0mm | 20X | 10.0mm | 30X | 7.5mm | 40X | 5.0mm |
15X/16mm | 15X | 16.0mm | 30X | 8.0mm | 45X | 5.0mm | 60X | 3.3mm |
20X/12mm | 20X | 12.0mm | 40X | 6.0mm | 60X | 3.3mm | 80X | 2.5mm |
25X/9mm | 25X | 9.0mm | 50X | 4.5mm | 75X | 3.0mm | 100X | 2.3mm |
30X/8mm | 30X | 8.0mm | 60X | 4.0mm | 90X | 2.7mm | 120X | 2.0mm |
Magnification | 20X-40X, 10X-120X with optional eyepieces and objectives | |||||||
Eyepiece | WF10X/23mm high-eyepoint, super wide-field; Convenient for observers wearing glasses | |||||||
Optional Eyepiece | WF10X/23mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm | |||||||
Main Body | Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired | |||||||
| Interpupillary Distance adjustment:54-75mm; Diopter adjustment:±5 diopters | ||||||||
Objective | 2X/4X, 1X/3X, 1X/2X | |||||||
Focusing Mount | A1 focusing mount with vertical working distance 50mm | |||||||
Stand | B1 pole stand, for more options, please refer to <“ACCESSORIES-MICROSCOPE STAND” | |||||||
Illumination | Fluorescent lamp, LED ring light, for more option, please refer to “ACCESSORIES-ILLUMINATOR” | |||||||
