Objective | Eyepiece | W.D.(mm) | |||||||
WF5X | WF10X | WF15X | WF20X | ||||||
Mag. | F.O.V | Mag. | F.OV. | Mag. | F.OV. | Mag. | F.OV. | ||
1X | 5X | 18.0mm | 10X | 20.0mm | 15X | 13.0mm | 20X | 10.0mm | 56 |
2X | 10X | 9.0mm | 20X | 10.0mm | 30X | 6.5mm | 40X | 5.0mm | 81 |
3X | 15X | 6.0mm | 30X | 6.7mm | 45X | 4.3mm | 60X | 3.3mm | 61 |
4X | 20X | 4.5mm | 40X | 5.0mm | 60X | 3.25mm | 80X | 2.5mm | 58 |
6X | 30X | 3.0mm | 60X | 3.35mm | 90X | 2.2mm | 120X | 1.67mm | 66 |
Magnification | 10x/20x, 10x/30x, 20x/40x with different two-magnification levels | ||||||||
Eyepiece | WF10X/20mm;high-eyepoint;wide-field;Convenient;forobservers wearing glasses | ||||||||
Optional Eyepiece | WF5X, WF10X, WF15X, WF20X | ||||||||
Main Body | Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired | ||||||||
Interpupillary Distance adjustment:55-75mm; Diopter adjustment:±5 diopters | |||||||||
Objective | 1X, 2X, 3X, 4X, 6X | ||||||||
Stand | 2L pole stand. | ||||||||
Illumination | 12v/10w incandescent lamp | ||||||||
12v/10w halogen lamp | |||||||||
LED illumination | |||||||||
T-4024-2L

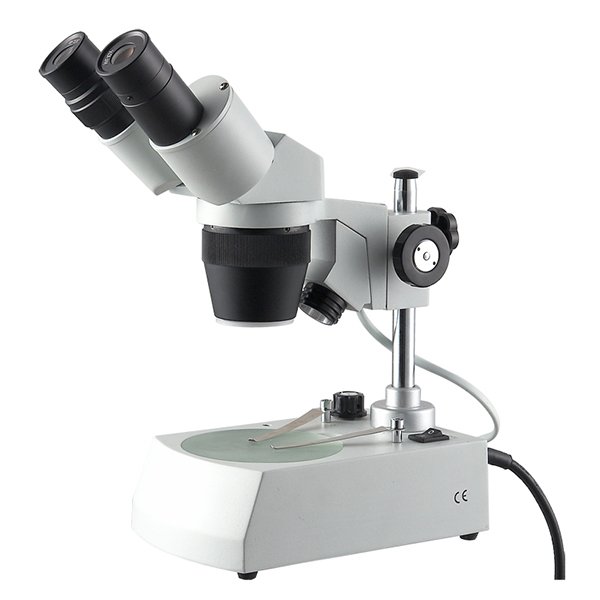

T-40 Series Stereo Microscope has two magnification levels(10x/20x, 10x/30x, or 20x/40x). It is designed for both indoor and outdoor applications, powered by either batteries or wall-power. It is an ideal microscope for student learning and classroom teaching. It is also a perfect device for viewing jewel, PCB, insects and so on.
