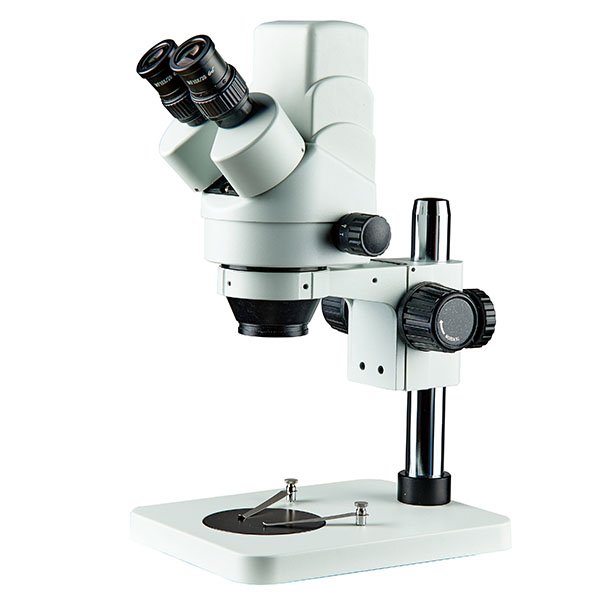

TZM-7045T-T1V

TZM-70451V Series Digital Microscope can observe the object in three dimensions within the field of view, providing crystal clear sharp images with high resolution and good depth of view, having long working distance.
It is easy to operate and get the images intuitively, widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurement. You can save, enlarge and print the pictures displayed at the screen. After installing the attached drive, you can get measured data of Straight Lines Measurement, Curve Measurement, Arc Length Measurement, Angular Measurement. Meanwhile, these data can be loaded into Excel or printed out directly.

Category: Products

Description

Vision Facilities	3.0Mpixel 1/2’’ COMS
Resolution	2048*1536 Effective Pixels
Pixel Size	3.18um*3.18um
Transmission Speed	7f/s@2048*1536
Signal to Noise Ratio	0.9v/lus-secx
Scanning Mode	Progressive Scanning
Operation System	Windows2000/XP
Data Interface	USB2.0(480Mbit/sec)
Power Supply	USB2.0
Operating Temperature	0℃-50℃
COMS Optional	1.3Mp, 3Mp, 5Mp

Eyepiece	Standard		Auxiliary Lens 0.5X		Auxiliary Lens 1.5X		Auxiliary Lens 2X
	W.D. 100mm		W.D. 165mm		W.D. 45mm		W.D. 30mm
	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V	Mag.	F.O.V
10X/20mm	7.0X	28.6mm	3.5X	57.1mm	10.5X	19mm	14.0X	14.3mm
10X/20mm	45.0X	4.4mm	22.5X	8.9mm	67.5X	3mm	90.0X	2.2mm
15X/15mm	10.5X	21.1mm	5.25X	42.8mm	15.75X	14.3mm	21.0X	10.7mm
15X/15mm	67.5X	3.3mm	33.75X	6.7mm	101.25X	2.2mm	135.0X	1.7mm
20X/10mm	14.0X	14.3mm	7.0X	28.6mm	21.0X	9.5mm	28.0X	7.1mm
20X/10mm	90.0X	2.2mm	45.0X	4.4mm	135.0X	1.5mm	180.0X	1.1mm
25X/9mm	17.5X	12.9mm	8.85X	25.4mm	26.2X	8.6mm	35.0X	6.4mm
25X/9mm	112.5X	2.0mm	56.3X	4.0mm	168.8X	1.3mm	225.0X	1.0mm
30X/8mm	21.0X	11.4mm	10.5X	22.9mm	31.5X	7.6mm	42.0X	5.7mm
30X/8mm	135.0X	1.8mm	67.5X	3.6mm	202.5X	1.2mm	270.0X	0.9mm
Magnification	7X-45X, 3.5X-270X with optional eyepieces and objectives
Eyepiece	WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece	WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm
Main Body	Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Main Body	Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective	0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1
Aux Lens	0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X
Focusing Mount	A1 focusing mount with vertical working distance 50mm
Stand	B1 pole stand, for more options, please refer to “ACCESSORIES-MICROSCOPE STAND”
Illumination	Fluorescent lamp, LED ring light, for more option, please refer to “ACCESSORIES-ILLUMINATOR”
