Eyepiece |
Standard |
Auxiliary Lens 0.5X |
Auxiliary Lens 1.5X |
Auxiliary Lens 2X |
||||
|
W.D. 100mm |
W.D. 165mm |
W.D. 45mm |
W.D. 30mm |
|||||
|
Mag. |
F.O.V |
Mag. |
F.O.V |
Mag. |
F.O.V |
Mag. |
F.O.V |
|
|
10X/20mm |
7.0X |
28.6mm |
3.5X |
57.1mm |
10.5X |
19mm |
14.0X |
14.3mm |
|
45.0X |
4.4mm |
22.5X |
8.9mm |
67.5X |
3mm |
90.0X |
2.2mm |
|
|
15X/15mm |
10.5X |
21.1mm |
5.25X |
42.8mm |
15.75X |
14.3mm |
21.0X |
10.7mm |
|
67.5X |
3.3mm |
33.75X |
6.7mm |
101.25X |
2.2mm |
135.0X |
1.7mm |
|
|
20X/10mm |
14.0X |
14.3mm |
7.0X |
28.6mm |
21.0X |
9.5mm |
28.0X |
7.1mm |
|
90.0X |
2.2mm |
45.0X |
4.4mm |
135.0X |
1.5mm |
180.0X |
1.1mm |
|
|
25X/9mm |
17.5X |
12.9mm |
8.85X |
25.4mm |
26.2X |
8.6mm |
35.0X |
6.4mm |
|
112.5X |
2.0mm |
56.3X |
4.0mm |
168.8X |
1.3mm |
225.0X |
1.0mm |
|
|
30X/8mm |
21.0X |
11.4mm |
10.5X |
22.9mm |
31.5X |
7.6mm |
42.0X |
5.7mm |
|
135.0X |
1.8mm |
67.5X |
3.6mm |
202.5X |
1.2mm |
270.0X |
0.9mm |
|
|
Magnification |
7X-45X, 3.5X-270X with optional eyepieces and objectives | |||||||
|
Eyepiece |
WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses | |||||||
|
Optional Eyepiece |
WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm | |||||||
|
Main Body |
Trinocular head, 45° inclined, 360° rotatable, can be locked in any position desired | |||||||
| Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters | ||||||||
|
Objective |
0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1 | |||||||
|
Aux Lens |
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X | |||||||
|
Focusing Mount |
A1 focusing mount with vertical working distance 50mm | |||||||
|
Stand |
B2L pole stand, for more options, please refer to “ACCESSORIES-MICROSCOPE STAND” | |||||||
|
Illumination |
Transmitted and reflected 12v/15w halogen, 7w fluorescent, 5v/3w LED illumination | |||||||

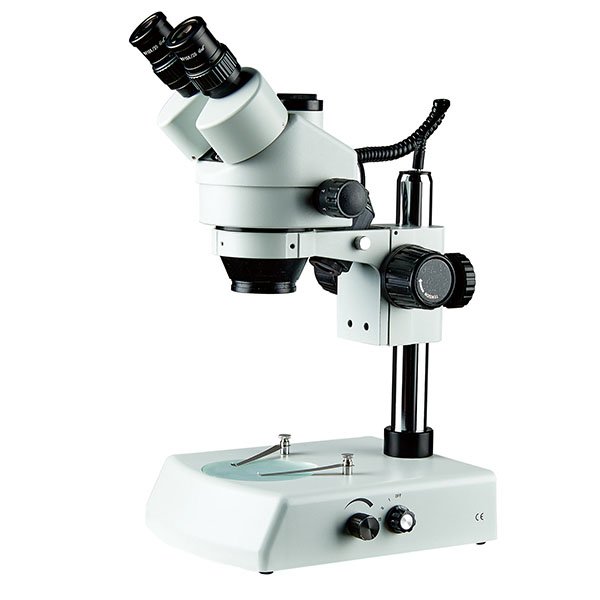

TZM-7045T-T2
TZM-7045T-T2
TZM7045 Series Stereo Zoom Microscope can provide crystal clear sharp images with high resolution and good depth within a broad field of view. Once brought in focus, images remains clear and sharp throughout the whole zoom range. It is widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurement.
