Eyepiece |
Standard |
Auxiliary Lens 0.5X |
Auxiliary Lens 1.5X |
Auxiliary Lens 2X |
||||
|
W.D. 105mm |
W.D. 177mm |
W.D. 47mm |
W.D. 26mm |
|||||
|
Mag. |
F.O.V |
Mag. |
F.O.V |
Mag. |
F.O.V |
Mag. |
F.O.V |
|
|
10X/22mm |
6.7X |
32.8mm |
3.4X |
65.7mm |
10.1X |
21.9mm |
13.4X |
16.4mm |
|
45.0X |
4.9mm |
22.5X |
9.8mm |
67.5X |
3.3mm |
90.0X |
2.4mm |
|
|
15X/16mm |
10.1X |
23.9mm |
5.0X |
47.8mm |
15.1X |
15.9mm |
20.1X |
11.9mm |
|
67.5X |
3.6mm |
33.8X |
7.1mm |
101.3X |
2.4mm |
135.0X |
1.8mm |
|
|
20X/12mm |
13.4X |
17.9mm |
6.7X |
38.5mm |
20.1X |
11.9mm |
26.8X |
9.0mm |
|
90.0X |
2.7mm |
45.0X |
5.3mm |
135.0X |
1.8mm |
180.0X |
1.3mm |
|
|
25X/9mm |
16.8X |
13.4mm |
8.4X |
26.9mm |
25.1X |
9.0mm |
33.5X |
6.7mm |
|
112.5X |
2.0mm |
56.3X |
4.0mm |
168.8X |
1.3mm |
225.0X |
1.0mm |
|
|
30X/8mm |
20.1X |
11.9mm |
10.1X |
23.8mm |
30.2X |
7.9mm |
40.2X |
6.0mm |
|
135.0X |
1.8mm |
67.5X |
3.6mm |
202.5X |
1.2mm |
270.0X |
0.9mm |
|
|
Magnification |
6.7X-45X, 3.4X-270X with optional eyepieces and objectives | |||||||
|
Eyepiece |
WF10X/22mm high-eyepoint, wide-field; Convenient for observers wearing glasses | |||||||
|
Optional Eyepiece |
WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm | |||||||
|
Main Body |
Trinocular head, 45° inclined, 360° rotatable, can be locked in any position desired | |||||||
| Interpupillary Distance adjustment:54-75mm; Diopter adjustment:±5 diopters | ||||||||
|
Objective |
0.67X-4.5X stereo zoom; Zoom Ratio:6.7:1 | |||||||
|
Aux Lens |
0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X | |||||||
|
Focusing Mount |
A1 focusing mount with vertical working distance 50mm | |||||||
|
Stand |
J4L fan base pole stand, for more options, please refer to “ACCESSORIES-MICROSCOPE STAND” | |||||||
|
Illumination |
Transmitted and reflected LED illumination with independent switches and adjustable intensity | |||||||
|
Adapter |
Provides a vertical phototube, C-mount adapters for CCD camera | |||||||

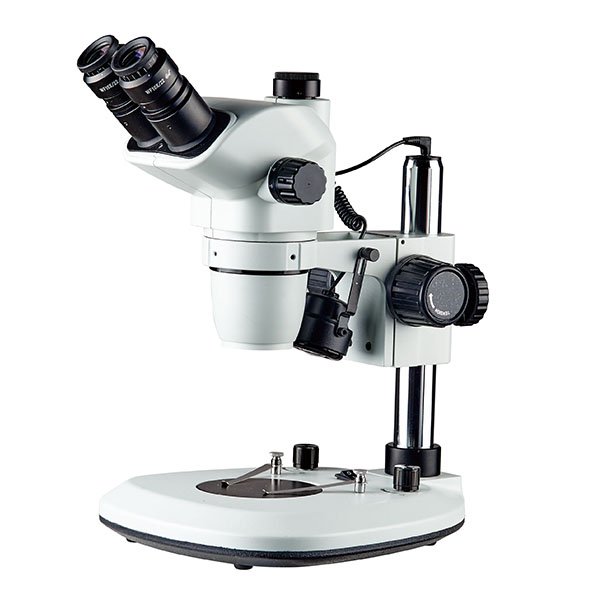

TZ6745T-R4L
TZ6745T-R4L
TZ6745T Series Stereo Zoom Microscope is fully coated optical system with super high resolution. It is characterized by brand-new optical design, the best reproduction and true color image. It is ideally suited for industrial as well as for biological research where high precision, maximum working distance and large field coverage is required.
