| MODEL | TSST-108/108T | TSST-270/270T | TSST-480/480T | TSST-600 | TSST-800 | TSST-1200 |
| Chamber Volume | 108 liters | 270 liters | 480 liters | 600 liters | 800 liters | 1200 liters |
| Internal Size WDH | 600×450 ×400mm | 900×600×500mm | 1000×800×600 | 1200×1000×500mm | 1600×1000×500mm | 2000×1000×600mm |
| External Size WDH | 1070 ×600 ×1180mm | 1410×880×1280mm | 1660x970x1500 | 1900×1300×1400mm | 2300×1300×1400mm | 2700×1300×1500mm |
| Temperature test | Brine test method (NSS ACSS) 35℃±1℃ | Corrosion resistance test method (CASS) 50℃±1℃ | ||||
| Temp Range | RT+5℃ ~ +40℃ | |||||
| Saturation Barrel Temp Range | RT+5℃ ~ +65 | |||||
| Temp Fluctuation | ± 0.5℃ | |||||
| Temp Uniformity | ± 2.0℃ | |||||

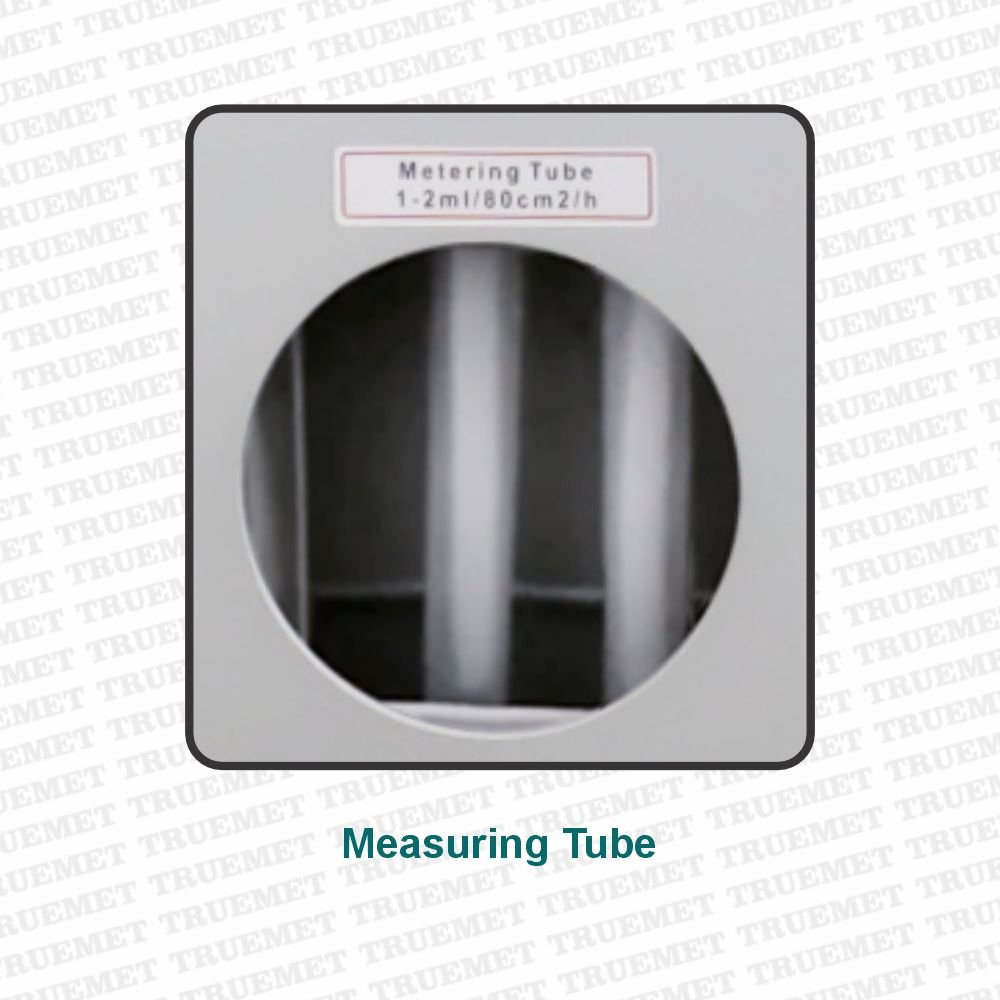

| Salt Spray Deposition / Fog Collection | 0.5 ~ 2.0ml/80cm2/h on an average run of at least 16h by horizontal | |||||

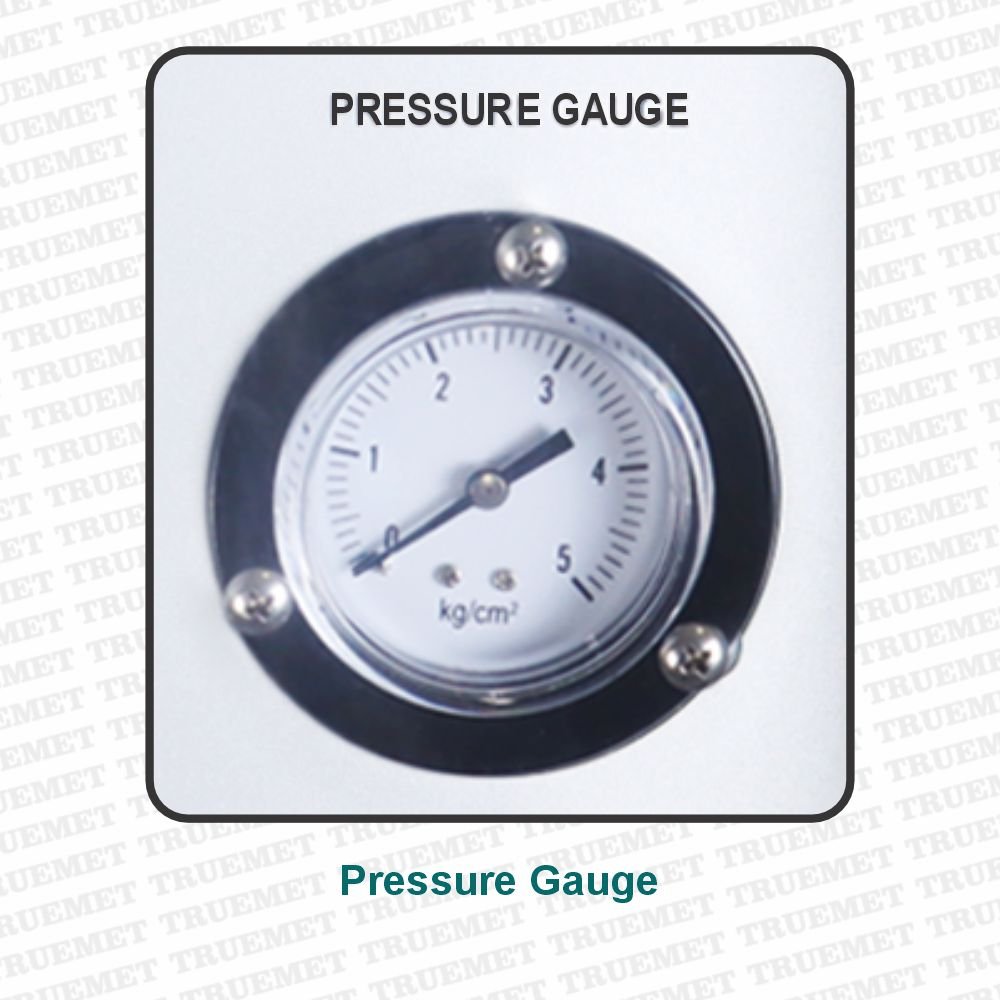

| Compressed air pressure | 1.00±0.01kgf/cm2 | |||||

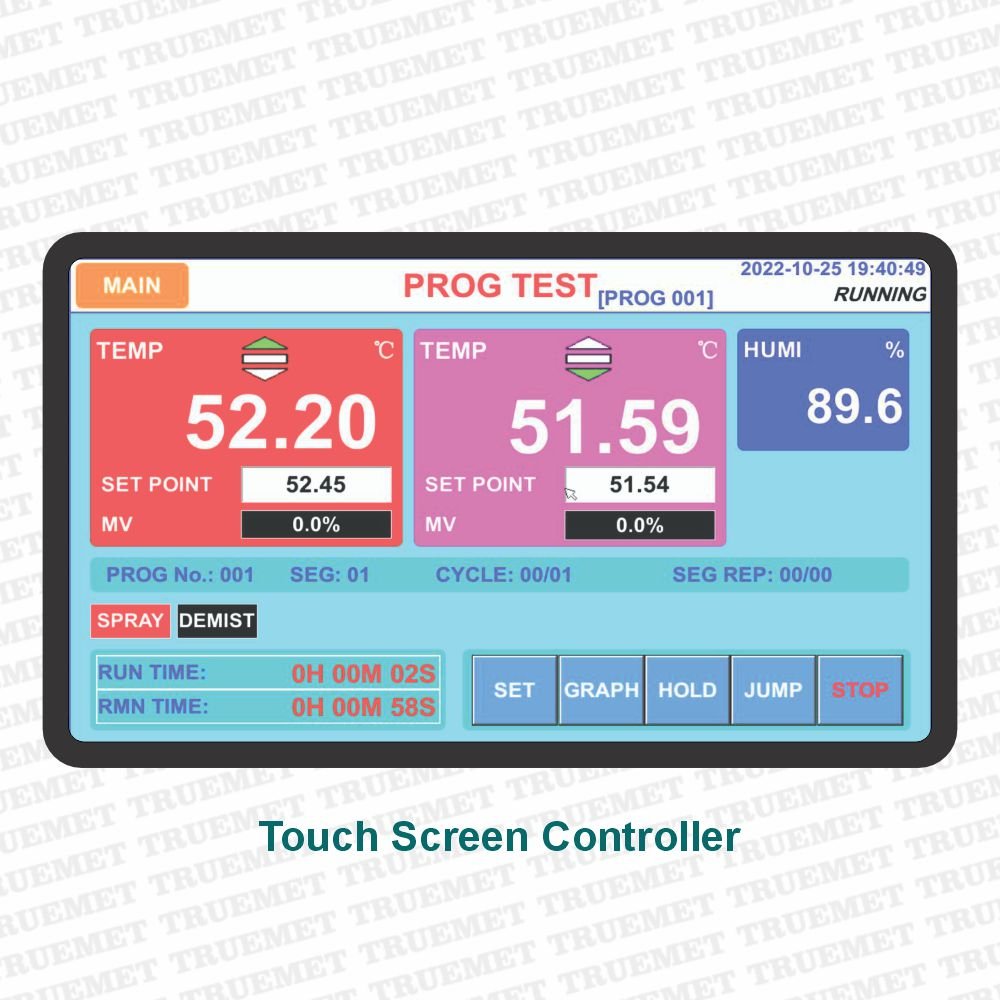

| Controller | TSST: PID digital controller TSST-T: Program touch screen controller | |||||
| Chamber Material | PVC (Polyvinyl Chloride) | |||||
| Timer | Yes | |||||
| Defog | Yes | |||||
| Alarm | NaCl Water shortage alarm | |||||
| Temperature Sensor | Platinum Resistance PT100 | |||||
| Power Supply | AC220 ~ 240V, 50Hz, 1-phase | |||||
| Standard Accessories | Nozzle×2, Round Stick, V-type stick, User manual×1 (Soft Copy) | |||||

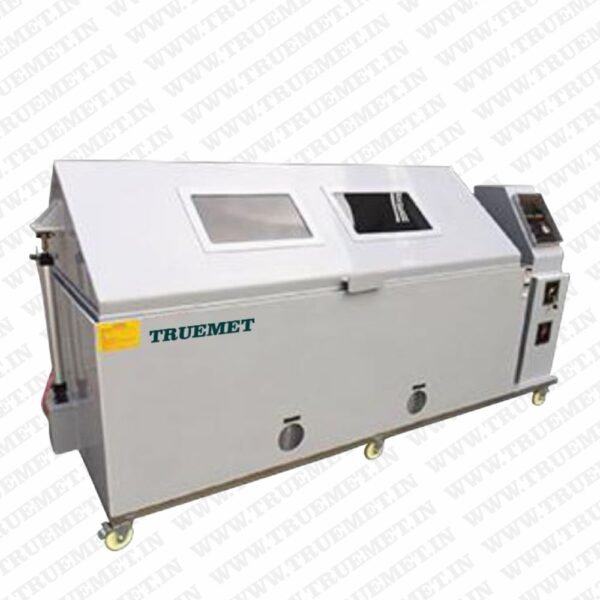

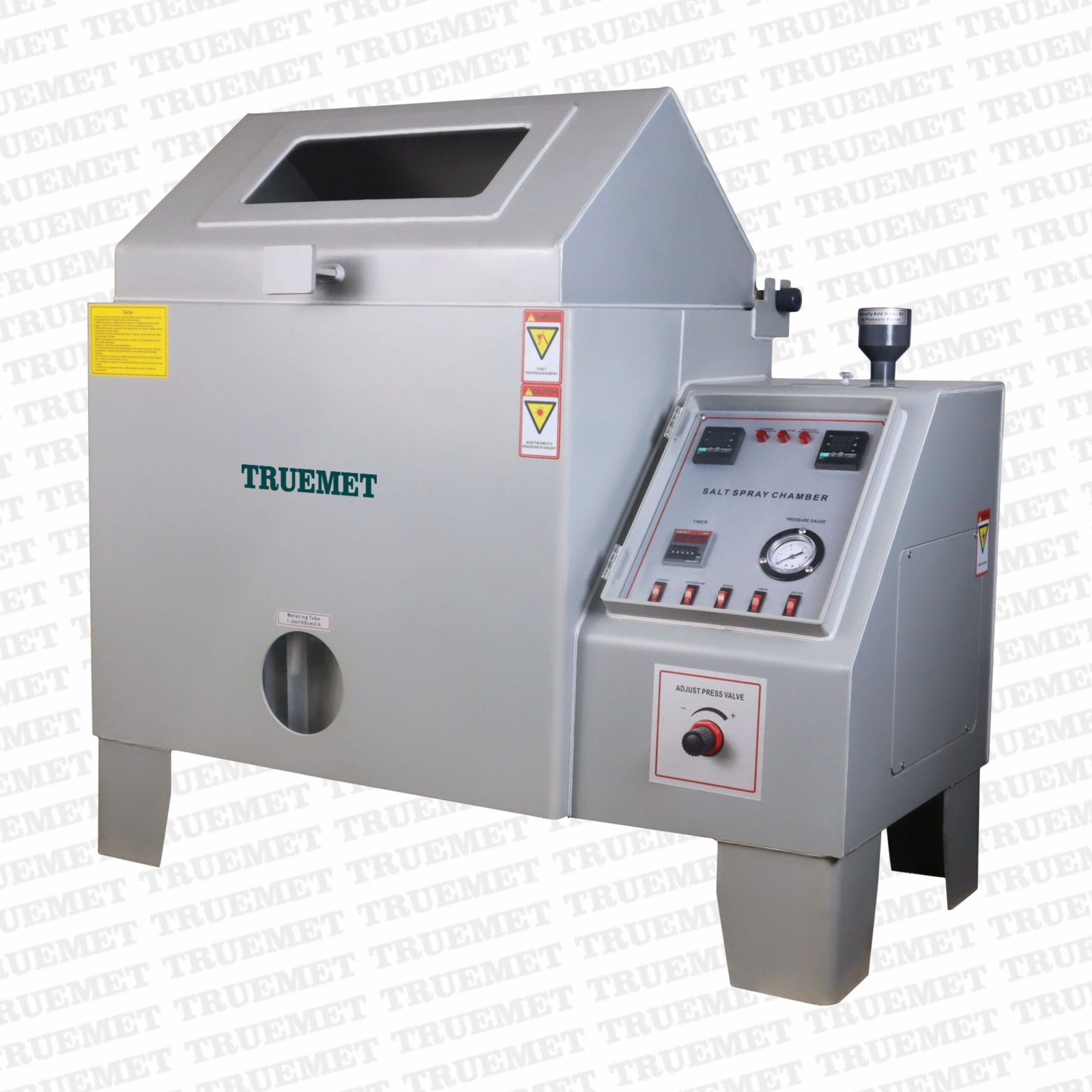

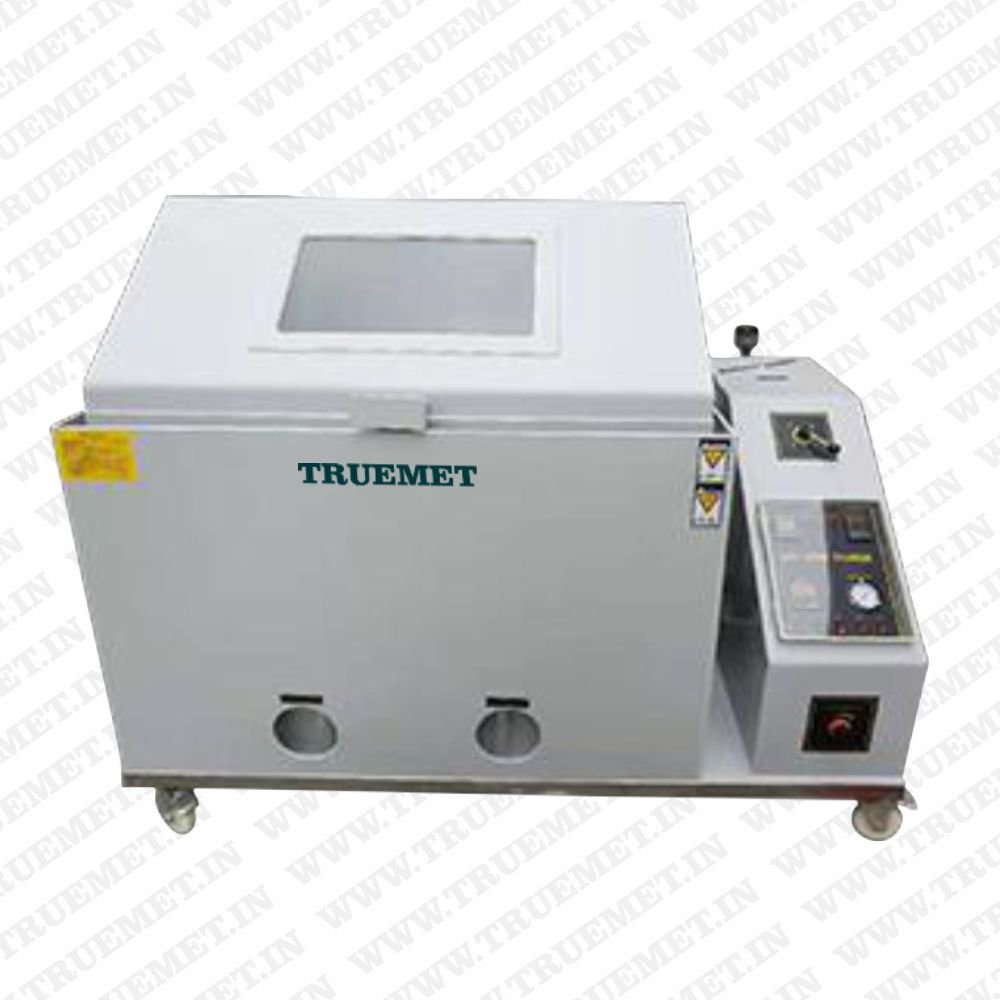

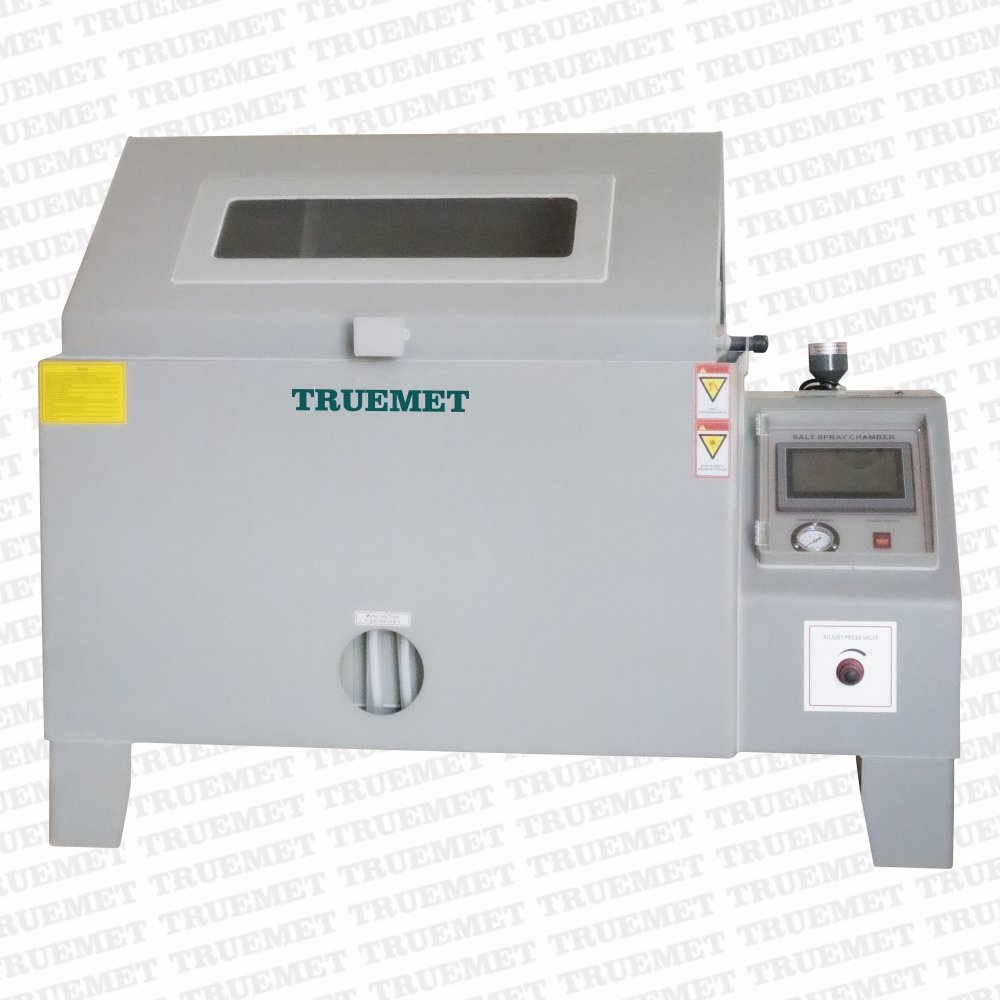

Salt Spray Chamber
Salt Spray Chamber
The salt spray chamber assesses the ability of materials and their protective layers to resist salt spray corrosion, as well as compares the process quality of similar protective layers, and also assesses the ability of certain products to resist salt spray corrosion; This chamber is suitable for the protection layer of components, electronic components, metal materials, and salt spray corrosion testing of industrial products magnification.
