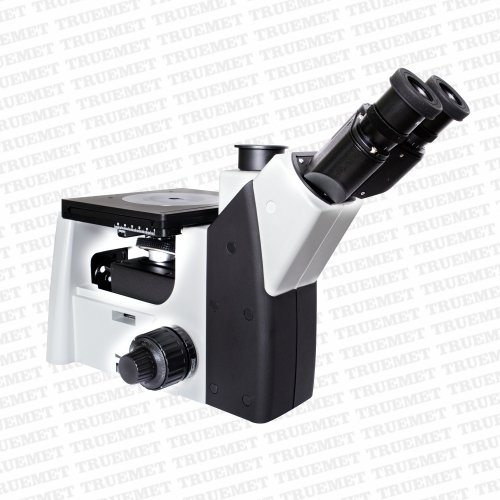

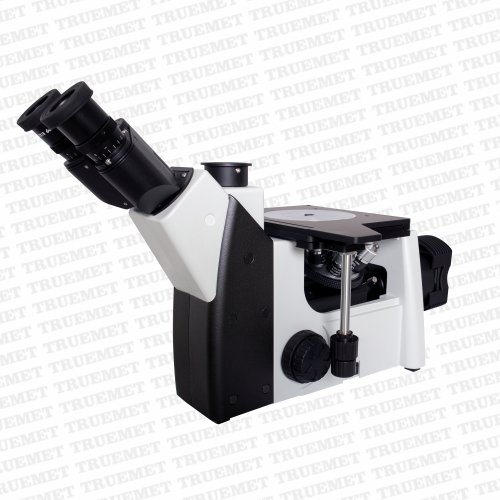

RIM-5 (Metallurgical Microscope)
RIM-5 (Metallurgical Microscope)
Features:
-

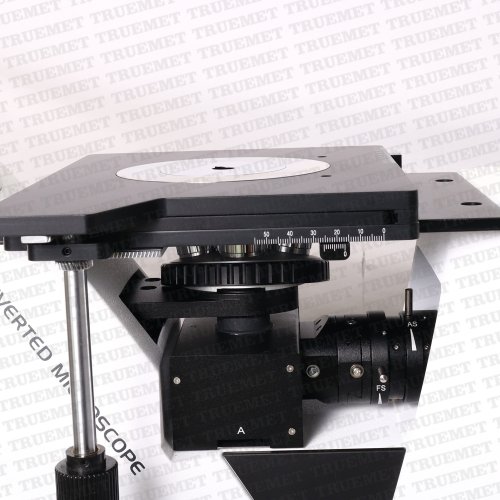

- Motorized XY-stage controlled by built-in stepping motor has a variety of control modes through mouse click control, high positioning accuracy, good repeatability, fast moving speed, and high work efficiency.
- Automatically scan along the edge of the sample.
- Multifunction 7-inch touch screen panel.

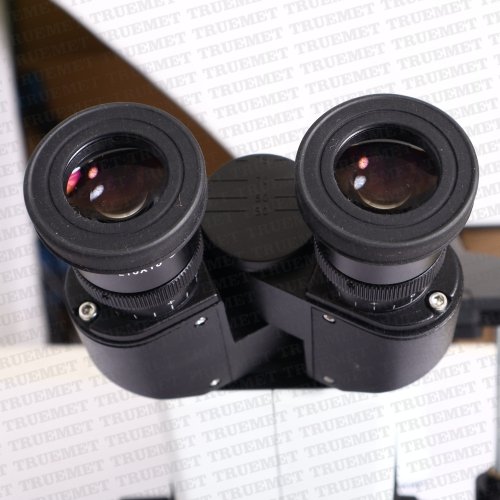

- Double optical channel (eyepiece & camera port).
- Automatic effective care depth determination.
| MODEL | HT-1000ADT |
| Turret Movement | Automatic |
| Measuring Eyepiece | 10X Digital Eyepiece |
| Min. Measuring Unit | 0.01µm |
| Testing Force | 10gf (0.098N) 25gf (0.245N) 50gf (0.49N) 100gf (0.098N) 200gf (1.96N) 300gf (2.94N) 500gf(4.9N) 1000gf (0.98N) |
| Hardness Scale | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
| Hardness Conversion Scale | HRA, HRB, HRC, HRD, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
| Hardness Range | 1 HV-4000 HV |
| Hardness Value of Reading | 8 inch LCD touch screen |
| Magnification | 100X(For observation), 400 X (For Measurement), can be extended upto 500X |
| Dwell Time | 1~99 sec |
| Loading Control | Automatically (Load, Dwell, Unload) |
| X-Y Testing Table | Size: 100X100, Max. Travel Range:25X25mm, Resolution0.01mm |
| Max height of specimen | 85mm |
| Max depth of specimens | 110mm |
| Light Source | Cold Light Source, 5V/3W LED(can be continuous use for 24 hours, no heat generate ensure stable working, servicing life can reach 100,000 hours) |
| Data Output | Built-in-Printer(Hardness Value The Max. And Min. Value, Testing times and Average Value),Built in RS-232 interface |
| Carried Standard | IS 1501:2013 &, ASTM-E384 & E92 |
| Overall Dimension | 490X185X515 mm ( L X W X H ) |
| Net weight(Approx.) | 45Kg |
| Power Supply | AC220V±5% 50-60Hz |
| Standard Accessories | 10x Omron digital micro eyepiece 1 No. 10X and 40X objective lens 1 No. Vickers indenter 1 No. X-Y Testing Table 1 No. Flat fixture 1 No. Thin specimen fixture 1 No. small parts fixture 1 No. Hardness Test Block(HV1, HV0.2) 1 No. Screw Driver 1 No. Level Bubble 1 No. Allen Keys 1 No. Leveling Screw 1 No. Power Cable 1 No. Dust-proof cover 1 No. Manual Book 1 No. Accessory Case 1 No. |
| Optional Accessories | TRUEMET VIDAS Vickers Impression Diagonal Analysis Software; Knoop Indentor; Knoop Hardness Block;Digital XY Table; Data Transfer Software, 2 kgf testing force |
