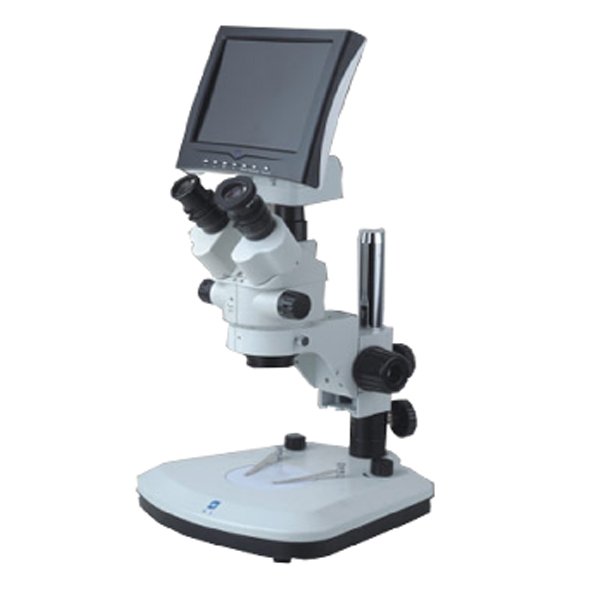

Digital Zoom Stereo Microscope | RIM-2T-LCD
Digital Zoom Stereo Microscope | RIM-2T-LCD
New structural design, more compact and flexible, more comfortable operating and more widely used. Large zoom ratio,high resolution and larger clear range. Full-featured, cost-effective, the best choose for the inspection in modem electronics industry .
| CCD Technical Parameters | |
| component size | 1/3 inch |
| Vertical resolution | 480 TV line |
| Pixel | 768 (H) X 490 (V) |
| Scanning system | 525 line 60 frame/sec |
| White balance | Switch between automatic balance and manual balance |
| Compensation | Automatic |
| Signal noise ratio | 46db |
| γ character | 0.45 |
| Minimum illumination | 3.1ux |
| Input voltage Power | 12V DC(9V-14V) |
| consumption | Below 1.85W |
| MODEL | RIM-2T-LCD |
| Eyepiece | Wide field high eyepiont eyepiece WF10X/20mm or WF15X/15mm or WF20X/10mm can mount
micrometer |
| Viewing Head | Digital head with LCD screen. 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X, working distance
100mm. inter-pupillary range 54~76mm, fixed eyepiece tube ( used for diopter adjustment eyepiece) 8 inch LCD screen, resolution ratio 800*600,CCD 520 TVLINES |
| Auxiliary Lens | 0.5X/165mm. 0.75X/105mm. 1.5X/45mm. 2X/30mm. |
| Focus | focus arm, two focusing knobs are with tension adjustable, adjust range 50mm. |
| Stand | pillar type sector plain stand |
| Other light
source |
Ring light/LED/Fiber |
| TV device | 0.35X/0.5X/1.0X C-mount adapter |
| Others | Precision measurement platform, dark field condenser, jewelry clip |
