| MODEL | RIM-2-IPS |
| Display | IPS10 inch HD touch screenAndroid base tab, screen tilting angle (-5° to 15°)with Geometrical Measurements function |
| Optical zoom | Continuous zoom objective 0.7X-5X |
| Hd camera | 1/3″ COMS 4MPBuilt-in camera module, real-time HDR, built-in OSD menu, |
| Large objective | 1X large objective lens, WD105mm |
| 1.4X large objective lens, WD100mm | |
| 0.5X large objective lens, WD170mm | |
| Light source |
LED ring light: 56 LEDs with dimming knob, switch, color temperature 5000-5500K |
| Data Storage | Built-in storage 16GB, support SD card storage, |
| Output interface | HDMI, USB 2.0,Mini usb2.0, support wireless mouse and keyboard |
| Base | Flatlarge basewithVertical track type, stroke 225mm |
| Standard Accessories |
USB cable 1.5m; HDMI cable 5m, FTH 26W LED ring lamp & 12V,3. 3A adaptor |

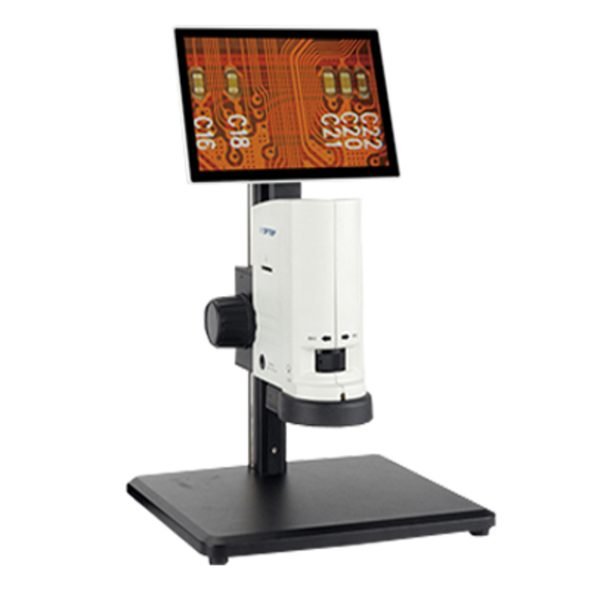

RIM-2-IPS Digital Microscope
RIM-2-IPS Digital Microscope
RIM-2-IPS all-in-one has a compact and beautiful exterior design. It integrates continuous zoom optical lens and high definition digital camera. The display, Camera and ring light are all powered by one power supply to avoid the mess of mixed wires 4 megapixels high-definition CMOS image sensor, excellent imaging, can truly restore the color, sharpness and contrast of the image, The frame rate of HD reached to 30 fps, simultaneously satisfied the demand for speed and clarity.
