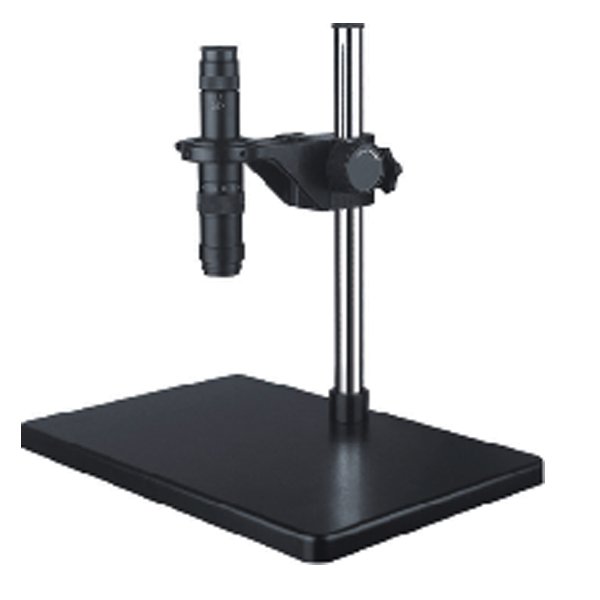

TDZ45-T3
TDZ45 Series Monocular Stereo Zoom Video Microscope adopt the Parallel Optical System. It offers sharp clear images, designed for using with a CCD camera. It is widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurement. 63-180lp/mm resolution meeting the requirements of conventional imaging machine vision.
| Eyepiece | Standard | Auxiliary Lens 0.5X | Auxiliary Lens 2.0X | |||
| W.D. 100mm | W.D. 165mm | W.D. 30mm | ||||
| Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | |
| 0.35X | 0.245X | 23mm | 0.1225X | 46mm | 0.49X | 11.6mm |
| 1.575X | 3mm | 0.7875X | 7mm | 3.15X | 1.7mm | |
| 0.5X | 0.35X | 17.6mm | 0.175X | 35mm | 0.7X | 8.8mm |
| 2.25X | 2.7mm | 1.125X | 5mm | 4.5X | 1.3mm | |
| 1X | 0.7X | 9mm | 0.35X | 17.6mm | 1.4X | 4mm |
| 4.5X | 1.6mm | 2.25X | 3mm | 9X | 0.71mm | |
| Magnification | 0.35X-2.25X(standard) | |||||
| Eyepiece | 0.5X(standard) | |||||
| Optional Eyepiece | 0.35X, 0.5X, 1X | |||||
| Objective | 0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1 | |||||
| Aux Lens | 0.5X, 1.0X, 2.0X | |||||
| Focusing Mount | XLB45-A1 focusing mount with vertical working distance 62mm; ID:50mm for lens | |||||
| Stand | B3 pole stand, for more options, please refer to “ACCESSORIES-MICROSCOPE STAND” | |||||
| Illumination | Fluorescent lamp, LED ring light, for more option, please refer to“ACCESSORIES-ILLUMINATOR” | |||||
| Accessories | Can be connected to the cameras and displays | |||||
