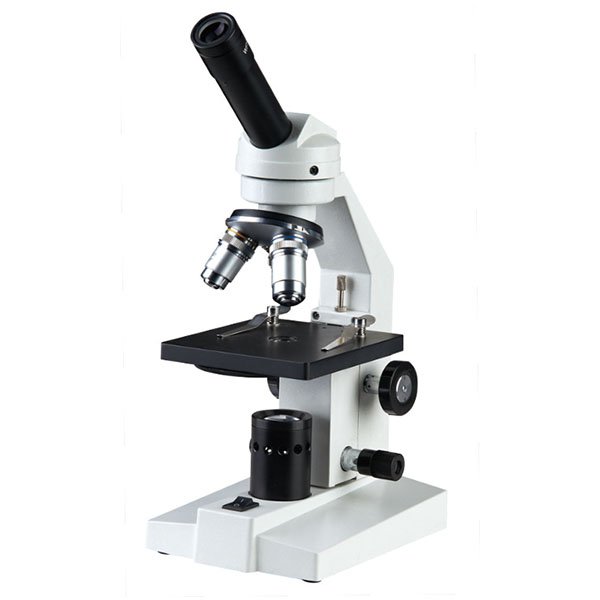

TGS-10 Monocular Biological Microscope
TGS-10 Monocular Biological Microscope
TGS-10 Series Monocular Biological Microscope is ideally suited for many applications in the laboratory, teaching and production. It has 45 degree inclined viewing and 360 degree rotating optical head. The sturdy metal tripod ensures high stability and the option to choose between coarse and fine adjustment facilitates precise working.
|
Eyepiece |
Objective |
|||
|
4X |
10X |
40X |
100X(optional) |
|
|
Magnification |
Magnification |
Magnification |
Magnification |
|
|
WF10X/18mm |
40X |
100X |
400X |
1000X |
|
Eyepiece |
WF10X/18mm, WF16X/14mm, WF20X/10mm; Reticle and pointer available | |||
|
Monocular Body |
45° inclined, 360 ° rotating optical head with 160mm length eyepiece tube | |||
|
Objective Nosepiece |
Triple or Quadruple | |||
|
Objective Lens |
Achromatic 4X, 10X, 40X and 100X | |||
|
Focusing Mount |
Separating coarse fine adjustment | |||
|
Mechanical Stage |
120mmx110mm metal stage with paired clips; Attachable measuring stage available | |||
|
Condenser |
N.A.0.65 fixed condenser and disc diaphragm | |||
| N.A.1.25 focusable ABBE condenser and iris diaphragm | ||||
|
Power Supply |
230V(115V optional) | |||
|
Illumination |
20W tungsten illumination, LED illumination; Φ42mm plano-concave double faced reflector available | |||
