Load Cell Based Touch Screen Digital Brinell Hardness Tester | THB-3000ADT
Load Cell Based Touch Screen Digital Brinell Hardness Tester | THB-3000ADT
Features:
-
- Load cell based touch screen digital Brinell hardness tester.
- The hardness value can be displayed directly and no need to enter the length of the diagonal.
- Automatic switching of indenter and objective lenses.
- Load/Scale selection through touch panel.
- Wide test force from 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500 & 3000 kgf.
- Automatic testing (Loading, Dwell, Unloading), no need to apply initial test force.
- User can measure the diameter of impression by 10X Digital Eyepiece.
| MODEL | THB-3000ADT |
| Display | Touch |

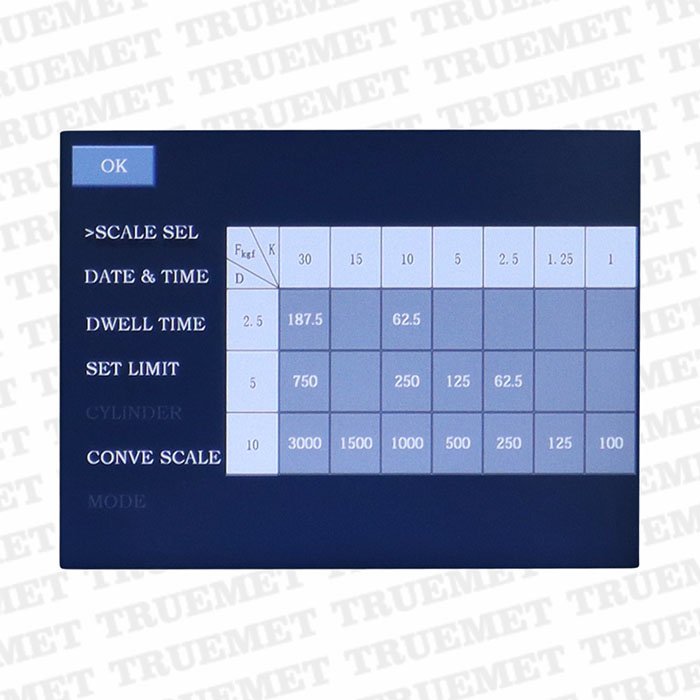

| Brinell Scale | HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750 HBW10/100, HBW10/125, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500 HBW10/3000 |
| Testing Force | 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf |

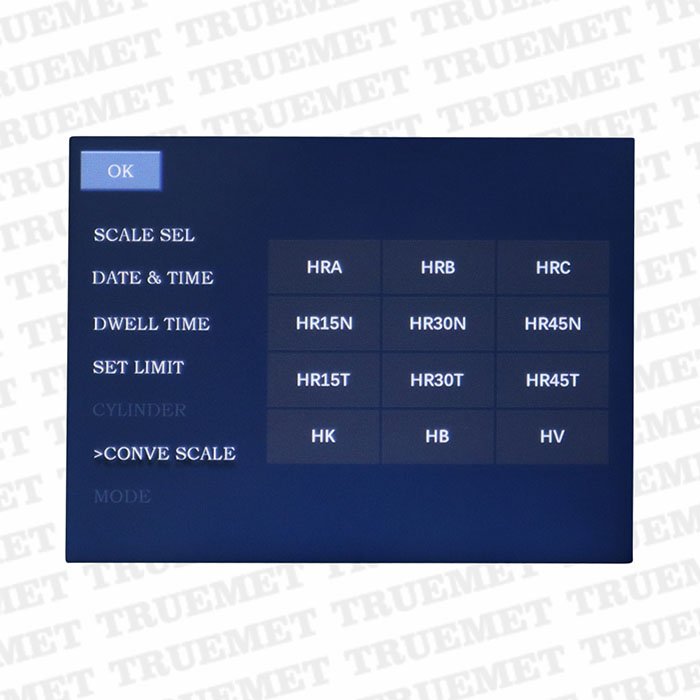

| Changing Scale | HRA, HRB, HRC, HV, HK, HB, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T. |
| Minimum unit of measurement | 0.6µm |
| Dwell Time | 0.99µm |
| Turret Control | Automatic |
| Hardness Testing Range | 8-650HBW |
| Total Magnification | 20X |
| Hardness Reading | Touch Screen Inch Touch Screen |

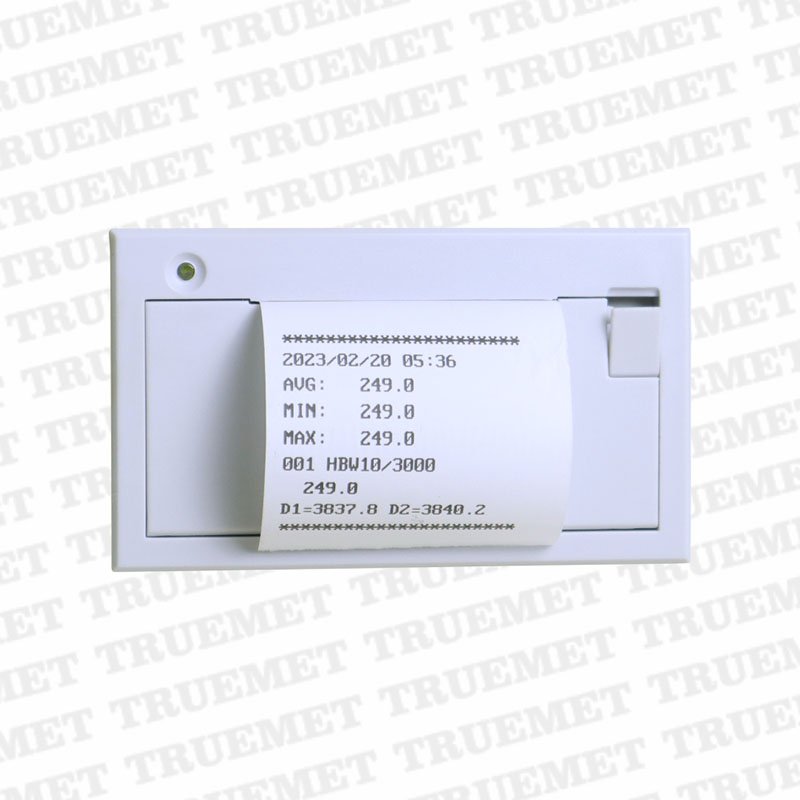

| Data Output | Built-in-Printer |
| Power | AC220+5%, 50-60Hz |
| Distance Between Indenter Center to Body |
135 |
| Maximum Height of the Specimen | 225mm |
| Weight | 130kg |
| Standard Accessories | Digital Eyepiece 1 No. Standard hardness block 2 Nos. Fuse 2A 3 Nos. Power Cable 1 No. Ф2.5,5,10 mm Hard alloy ball indenter 1 for each. Flat table(100 mm) , V-table(60 mm) 1 for each. Printer roll 1 No. Machine Manual 1 No. |
