| MODEL | TLRH-Z | TLRSH-Z |
| Z Axis Movement | Auto | |
| Display | 8 inch Touch Screen | |
| Initial Test Force (N) | 98.07 N (10kgf) for Rockwell | 29.42 (3kgf) for Superficial 98.07 N (10kgf) for Rockwell |
| Main Test Force (N) | 588.4N, 980.7N, 1471N (60kgf) (100kgf) (150kgf) |
147.1N (15kgf), 294.2N (30kgf), 441.3N (45kgf), 588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf) |
| Loading Control | Automatic (Loading, Dwell, Unloading) | |
| Conversion Scale | HR (Rockwell), HB (Brinell), HV (Vickers) | |
| Max Test Height | 270mm | |
| Depth of Throat | 165mm | |
| Dwell Time | 1~60s | |
| Data Output | Built-in printer & USB port | |

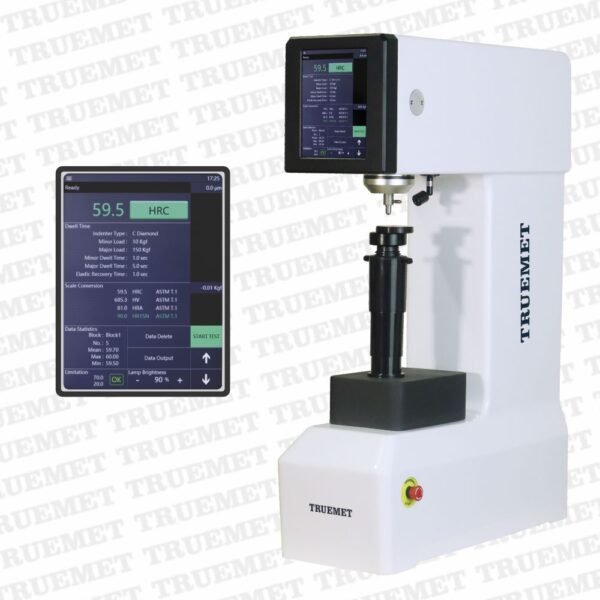

Fully Automatic Touch Screen Load Cell Based Rockwell Hardness Tester | TLRH-Z / TLRSH-Z
Fully Automatic Touch Screen Load Cell Based Rockwell Hardness Tester | TLRH-Z / TLRSH-Z
Features:
-
- Automatic Z Axis : Just press START, entire process will be done automatically. The sample will be auto lifted to approach the indentor, and finish hardness testing automatically.
- Load Cell, Closed Loop, Force Control : TLRH-Z/TLRSH-Z is a new generation load cell Rockwell Hardness Tester with electronically controlled, closed loop system and advanced force technology to achieve absolute accuracy, reliability and repeatality.
- Adjustable Illumination System : Built-in adjustable illumination light source is fitted in machine to see the test area clearly.

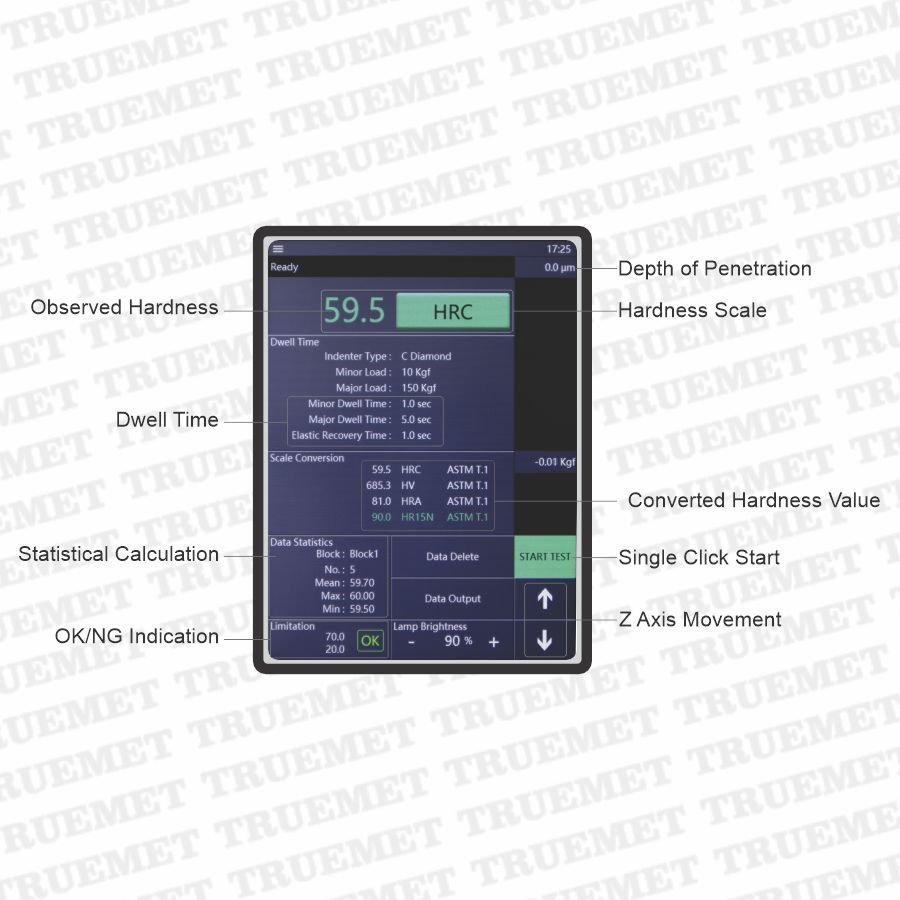

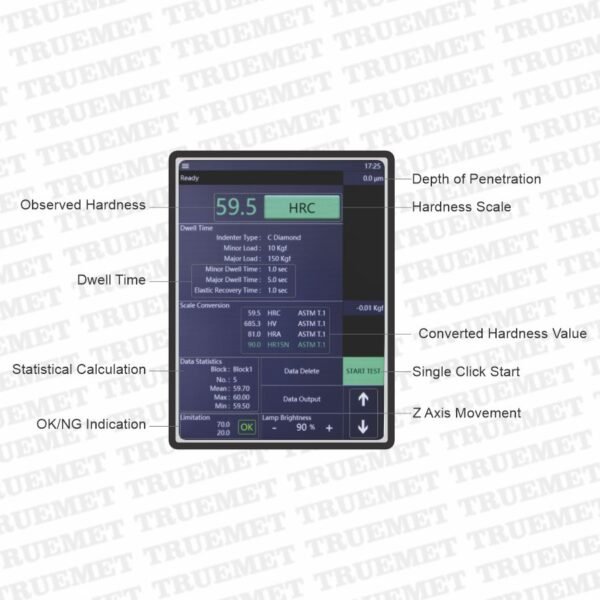

- Large Touch Screen Panel : Multi function 8 inch touch screen panel is fitted on machine which display various data output. Such as observed hardness, permanent depth of penetration, max depth of penetration, indentor type, Minor & Major Load, multiple conversion value, Data Statistics, OK&NG.
- Hardness Conversion : 4 conversion scales (hardness value) can be displayed at the same time as per ASTM & ISO standard.

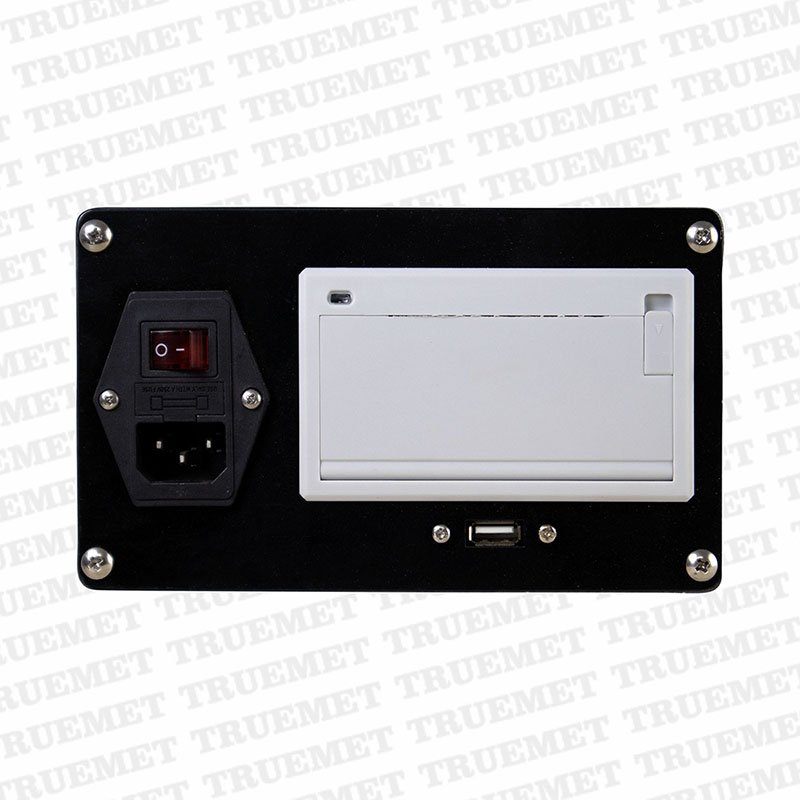

- Data Output : Equipped with built-in thermal printer to take the print out hardness result. USB port is also available to get the data in pendrive.
