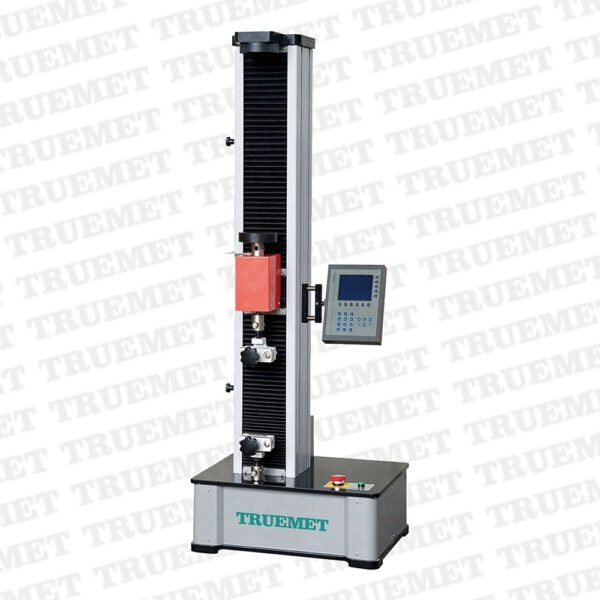

Electro Mechanical Universal Testing Machine (Single Column) | ES Series

Features:

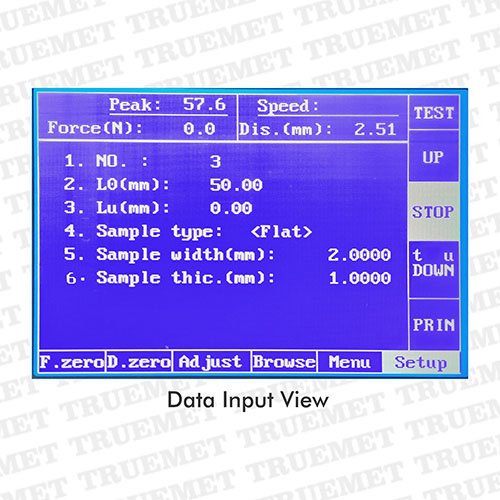

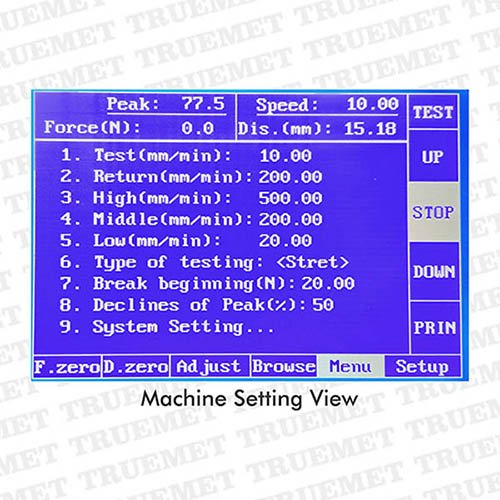

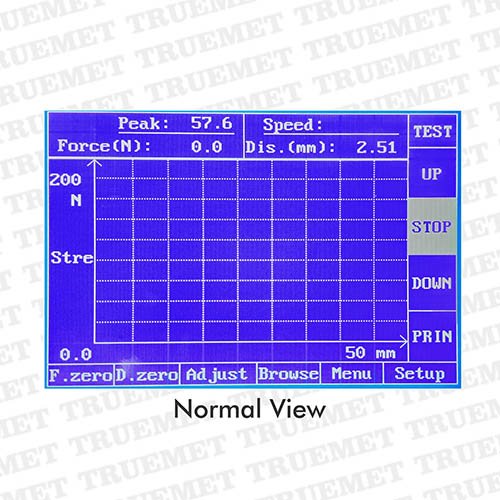

1. Automatic Display: During the whole testing process, the LCD real time display the testing force, peak value, displacement, testing speed and testing force – time curve, testing force – displacement curves.
2. Automatic Return: Beam automatically return to initial position when testing finished.
3. Breakage judgement: After sample fracture beam automatically stop moving.

	MODELS	ES-1	ES-2	ES-3	ES-5
Force Measurement	Max Load Capacity	1KN	2KN	3KN	5KN
	Accuracy	within ± 1% of the reading from 2% to 100%
	Resolution	1/20000 counts
	Calibration	Pre calibrated loadcell (max 4 nos) can be interchanged without further calibration (only in CES series)
Structure	Type	Single Column, double spaces, table top
	Max. tensile test space (approx)	600mm	600mm	600mm	600mm
	Max. compression test space (approx)	600mm	600mm	600mm	600mm
Crosshead	Resolution	0.01mm	0.01mm	0.01mm	0.01mm
	Speed Range (stepless in mm/min)	0.05 – 500 (CES Series) & 1 – 500 (ES Series)
	Return Speed (stepless in mm/min)	0.05 – 500 (CES Series) & 1 – 500 (ES Series)
	Crosshead speed Accuracy	± 1%
	Crosshead position adjustment	Both from software and handremote controller
Safety Protection	Over travel protection	Over travel safety by fixed and adjustable limit switches at both ends.
	Overload Protection	By system setting
	Emergency Stop	By emergency push button
	Standard Accessories	Load Cell 1 No. Compression Plate 1 No. Control Connecting Cable 1 No. Power Cable 1 No. Instruction Manual 1 No.
	Dimension (LxWxH) in mm approx	425x400x1315
	Weight approx	90kg
	Power Requirement	AC220V±10%, 50Hz
	Optional Accessories	Computer, Extensometers, Long Travel Extensometers, Bending fixtures, Vice and Flat type grips, Computer system special attachments and Fixtures
