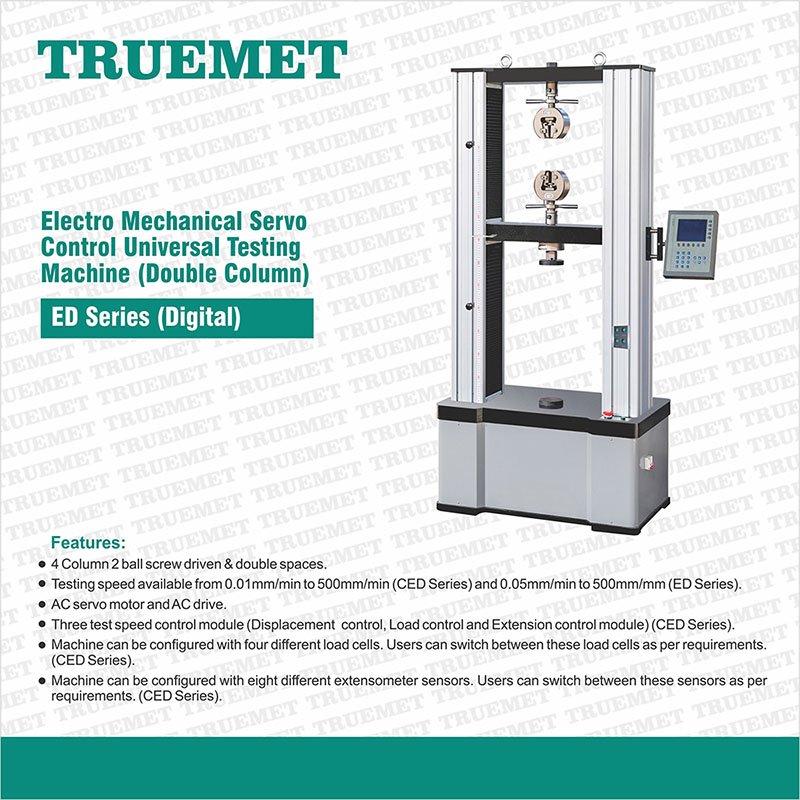

Electro Mechanical Servo Control Universal Testing Machine (Double Column) | ED Series

Features:

1. Digital Display: During the whole testing process, the LCD real time display the testing force, peak value, displacement, testing speed and testing force – time curve, testing force – displacement curves.
2. Automatic Return: Beam automatically return to initial position when testing finished.
3. Breakage Judgement: After sample fracture beam automatically stop moving.

	MODELS	ED-10	ED-20	ED-50	ED-100
Force Measurement	Max Load Capacity	10KN	20KN	50KN	100KN
	Accuracy	within ± 1% of the reading from 2% to 100%
	Resolution	1/20000 counts
	Calibration	Pre calibrated loadcell (max 4 nos) can be interchanged without further calibration (only in CED series)
Structure	Type	4 Column 2 ball screw driven & double spaces
	Max. tensile test space (approx)	800mm	800mm	700mm	700mm
	Max. compression test space (approx)	1040mm	1040mm	950mm	950mm
	Effective test width (approx)	400mm	400mm	500mm	550mm
Crosshead	Resolution	0.01mm	0.01mm	0.01mm	0.01mm
	Speed Range (stepless in mm/min)	0.01 – 500 (CED series) & 0.05 – 500 (ED series)
	Return Speed (stepless in mm/min)	0.01 – 500 (CED series) & 0.05 – 500 (ED series)
	Crosshead speed Accuracy	± 1%
	Crosshead position adjustment	Both from software and handy remote controller
Safety Protection	Over travel protection	Over travel safety by fixed and adjustable limit switches at both ends
	Overload Protection	By system setting
	Emergency Stop	By emergency push button
	Standard Accessories	Load Cell 1 No. Compression Plate 1 No. Control Connecting Cable 1 No. Power Cable 1 No. Instruction Manual 1 No.
	Dimension (LxWxH) in mm approx	740x420x1720	740x420x1720	850x480x1865	1000x550x2076
	Weight approx	160kg	160kg	460kg	800kg
	Power Requirement	AC220V±10%, 50Hz
	Optional Accessories	Computer, Extensometers, Long travel extensometers, Bending fixtures, Vice and Flat type grips, Safety door, Computer system special attachments and Fixtures
