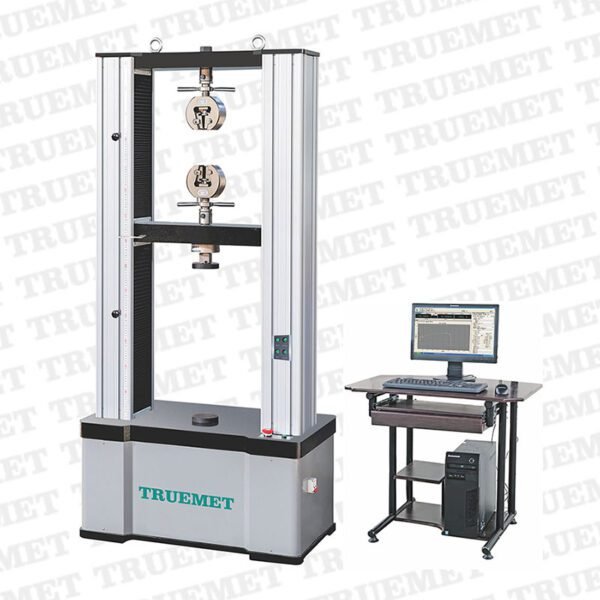

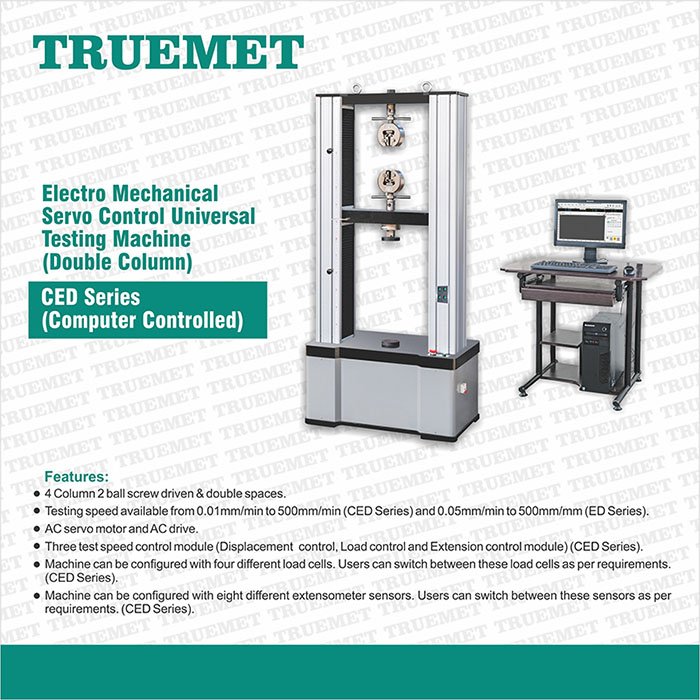

Electro Mechanical Servo Control Universal Testing Machine (Double Column) | CED Series

Features:

1. 4 Column 2 ball screw driven & double spaces.
2. Testing speed available from 0.01mm/min to 500mm/min (CED Series).
3. AC servo motor and AC drive.
4. Three test speed control module (Displacement control, Load control and Extension control module) (CED Series).

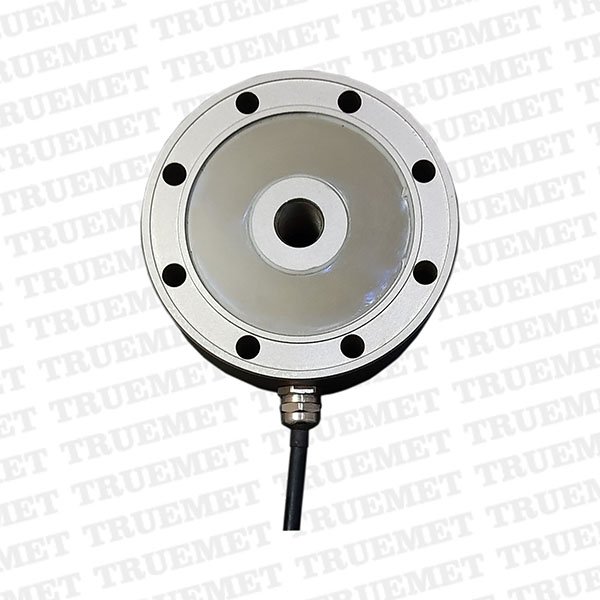

5. Machine can be configured with four different load cells. Users can switch between these load cells as per requirements. (CED Series).
6. Machine can be configured with eight different extensometer sensors. Users can switch between these sensors as per requirements. (CED Series).

View Catalogue

Get Latest Price

Categories: ELECTO MECHANICAL SERVO CONTROL UTM (DOUBLE COLUMN), UNIVERSAL TESTING MACHINES

Description

td width=”100″>950mm

	MODELS	CED-10	CED-20	CED-50	CED-100	CED-200
Force Measurement	Max Load Capacity	10KN	20KN	50KN	100KN	200KN
	Resolution (KN)	0.0005	0.001	0.0025	0.005	0.01
	Accuracy	within ± 1% of the reading from 2% to 100%
	Calibration	Pre calibrated loadcell (max 4 nos) can be interchanged without further calibration (only in CED series)
Structure	Type	4 Column 2 ball screw driven & double spaces
	Max. tensile test space (approx)	800mm	800mm	700mm	700mm	650mm
	Max. compression test space (approx)	1040mm	1040mm	950mm	950mm	1120mm
	Effective test width (approx)	400mm	400mm	500mm	550mm	600mm

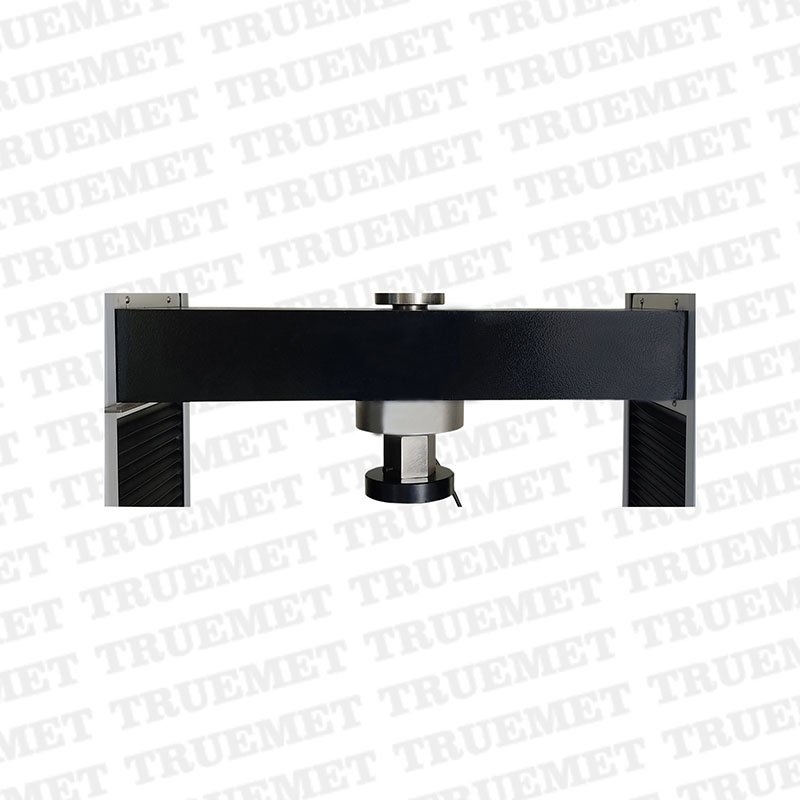

Crosshead	Resolution	0.01mm	0.01mm	0.01mm	0.01mm	0.01mm
	Speed Range (stepless in mm/min)	0.01 – 500 (CED series) & 0.05 – 500 (ED series)
	Return Speed (stepless in mm/min)	0.01 – 500 (CED series) & 0.05 – 500 (ED series)
	Crosshead speed Accuracy	± 1%

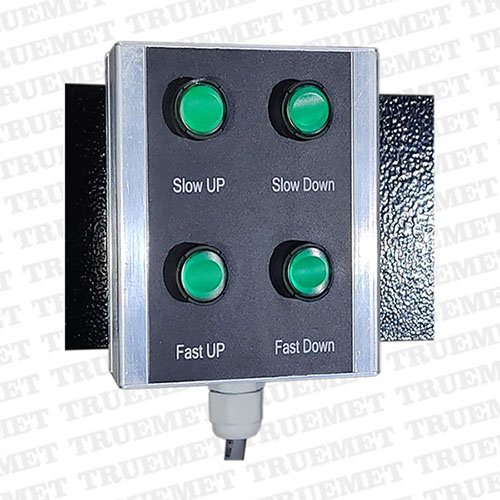

	Crosshead position adjustment	Both from software and handy remote controller

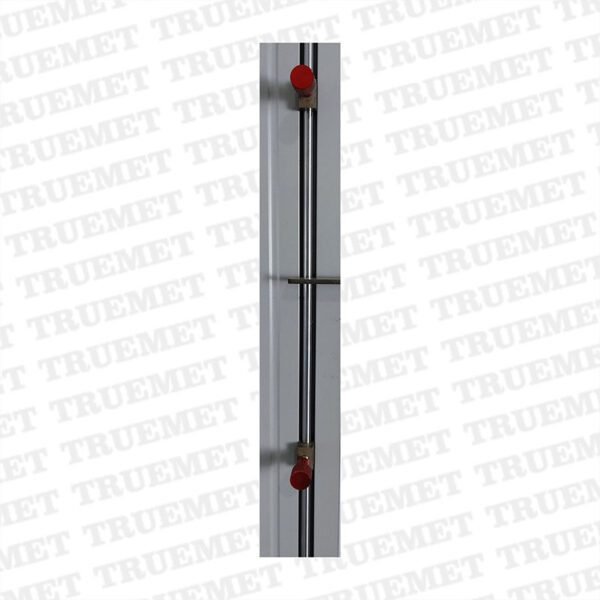

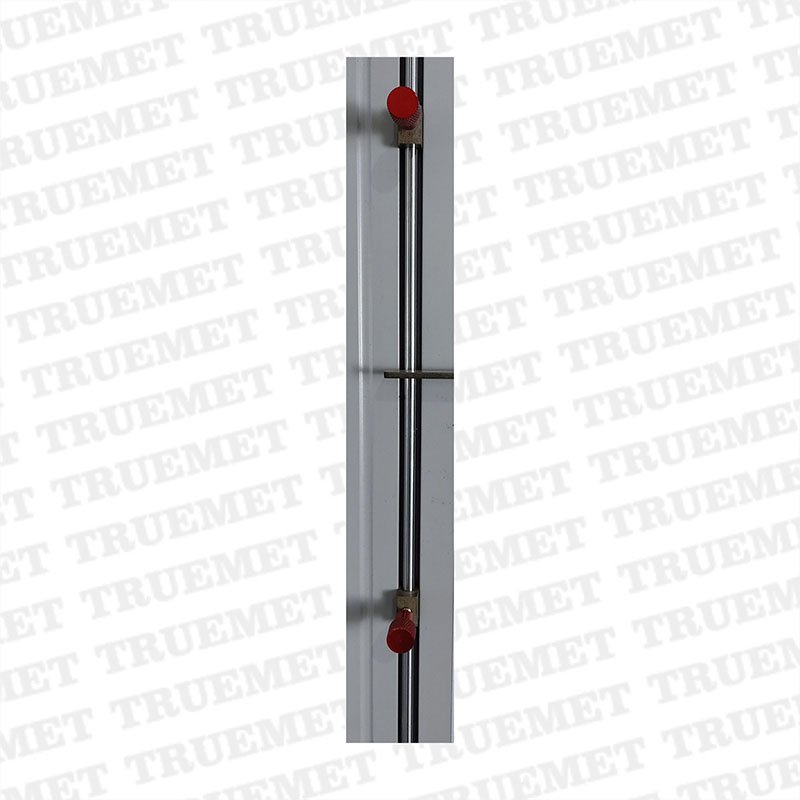

Safety Protection	Over travel protection	Over travel safety by fixed and adjustable limit switches at both ends
	Overload Protection	By system setting

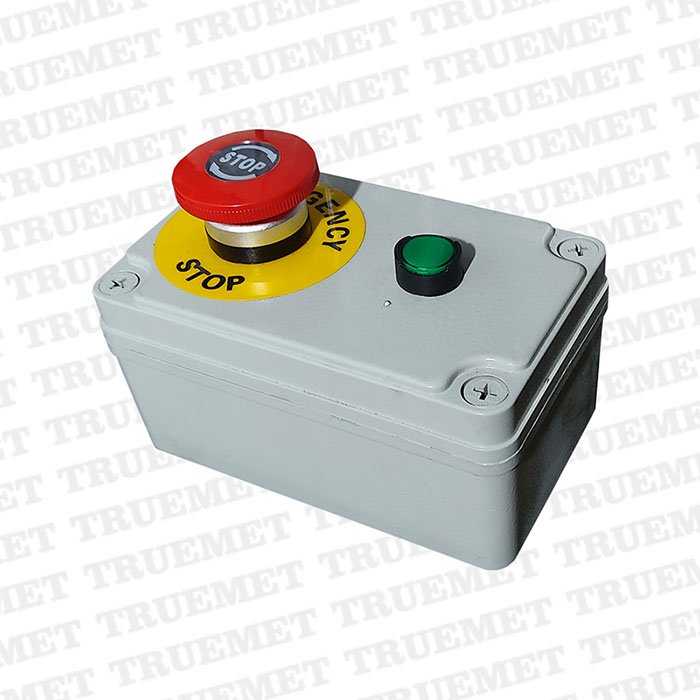

	Emergency Stop	By emergency push button
	Standard Accessories	Load Cell 1 No. Compression Plate 1 No. Control Connecting Cable 1 No. Power Cable 1 No. Instruction Manual 1 No.
	Dimension (LxWxH) in mm approx	740x420x1720	740x420x1720	850x480x1865	1000x550x20761108	1108x798x2450
	Weight approx	160kg	160kg	460kg	800kg	1000kg
	Power Requirement	AC220V±10%, 50Hz

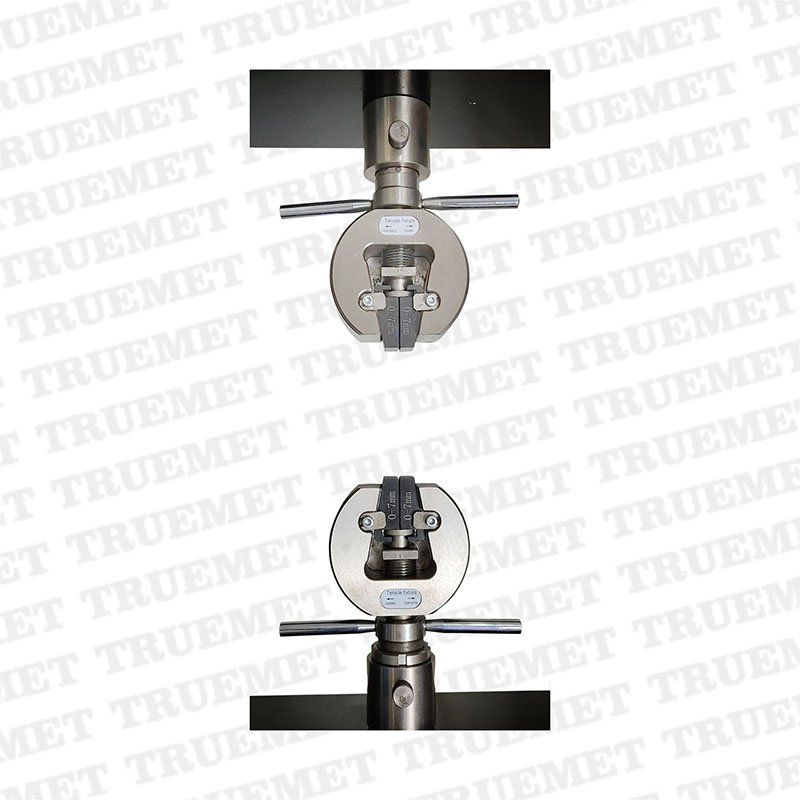

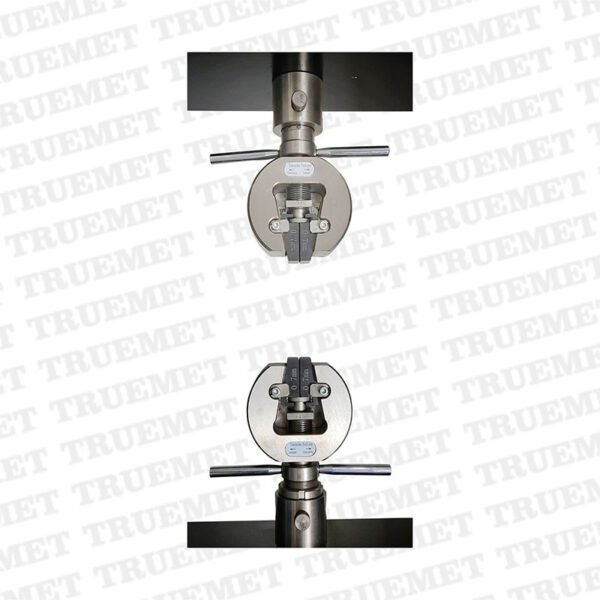

	Optional Accessories	Computer, Extensometers, Long travel extensometers, Bending fixtures, Vice and Flat type grips, Safety door, Computer system special attachments and Fixtures
