| Vision Facilities | 3.0Mpixel ½ “ CMOS |
| Resolution | 2048* 1536 Effective Pixels |
| Pixel Size | 3.18um*3.18um |
| Transmission Speed | 7f/s@2048*1536 |
| Signal to Noise Ratio | 0.9v/lus-Secx |
| Scanning Mode | Progressive Scanning |
| Operation System | Windows2000/XP or Above |
| Data Interface | USB 2.0(480 Mbit/sec) |
| Power Supply | USB 2.0 |
| Operating Temperature | 0°C-50-°C |
| CMOS Optional | 1.3Mp, 3Mp, 5Mp |
TZM-7045T-T7V
TZM-7045T-T7V

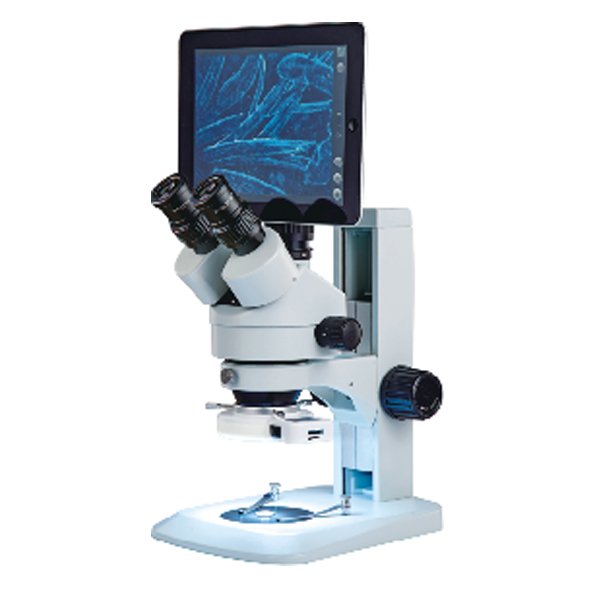

TZM-7045 Digital Microscope can observe the object in three dimensions on within the field of view providing crystal clear sharp image with high resolution and good depth of view, having long working distance. It is easy to operate and get the images intuitively, widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection, and measurement. You can save, enlarge and print the pictures displayed at the screen. After installing the attached drive, you can get measured data of Straight Lines Measurement, Curve Measurement, Arc Length Measurement, Angular Measurement. Meanwhile, these data can be loaded into Excel or printed out directly.
