| MODEL | RIM-12LCD-3D |
| Optical System | Finite-conjugate |
| Objective Magnification | 0.7X-5X zoom with detent |
| Integrated Reduction | 0.4X |

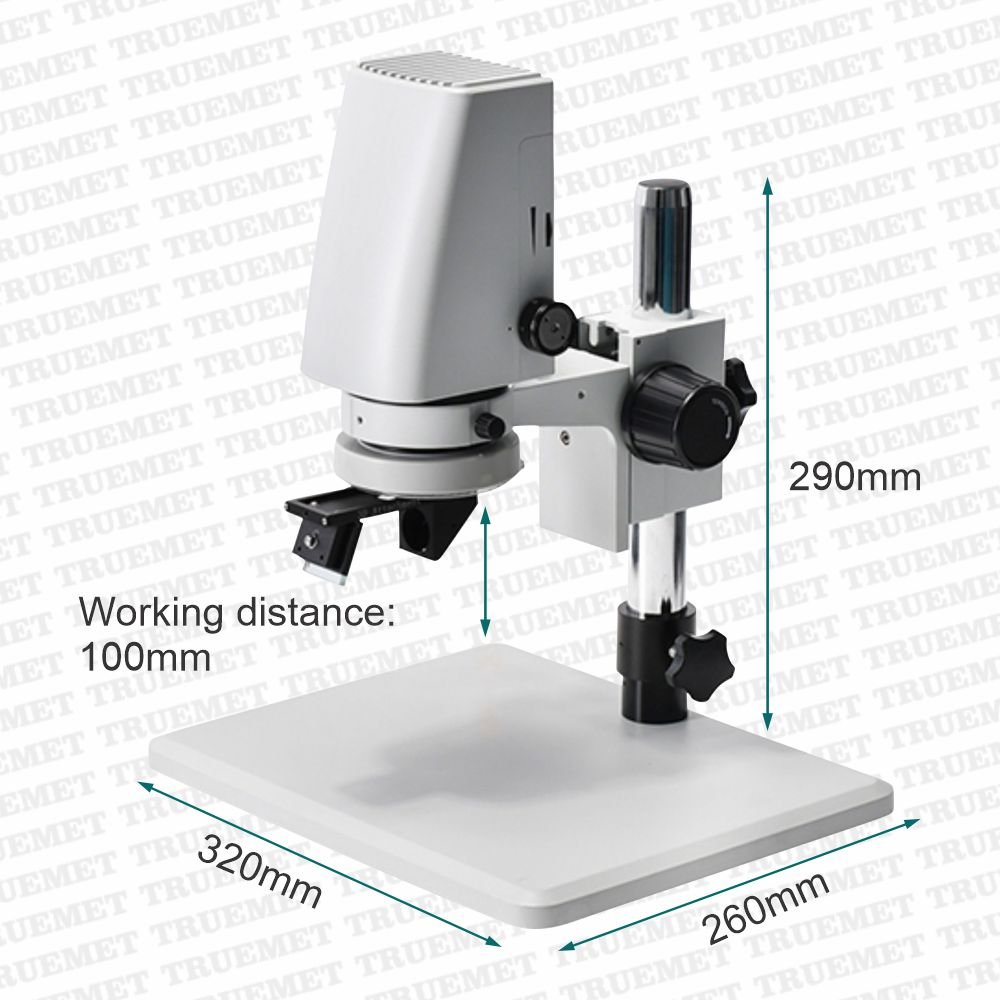

| Working Distance | 100mm |
| Sensor | Sony IMX307 (color) |
| Sensor Type | CMOS |
| Sensor Optical Format | 1/2.8” |
| Active Pixels | 2M (1920 x 1080) |
| Active Sensor Area | 5.57mm x 3.13mm |
| Display Size | 11.6” |
| Magnification | Monitor : 46X, Displayed : 12.9X-92X |
| Native Resolution | 1920 x 1080 |
| Illuminator Type | 144-LED ring light |
| Power Requirements | 12VDC 1A input, 110-240VAC, 50-60HZ adapter included |
| Stand Type | Table stand with pillar |
| Base Dimensions | 320mm x 260mm x 20mm |

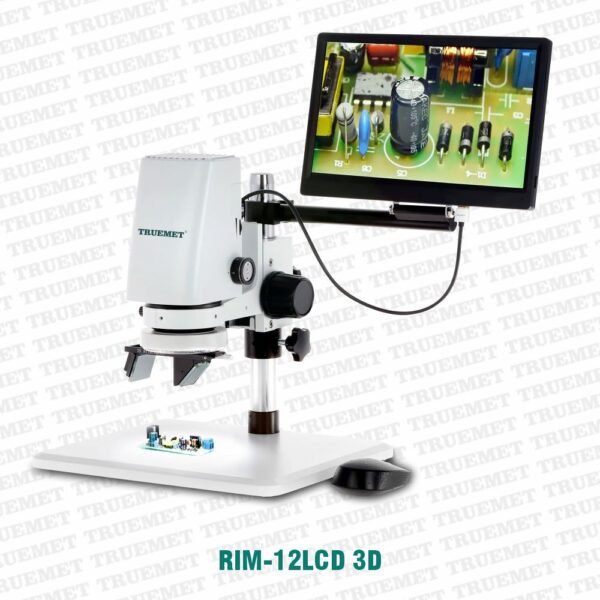

Digital Video Microscope | RIM-12LCD 3D
Digital Video Microscope | RIM-12LCD 3D

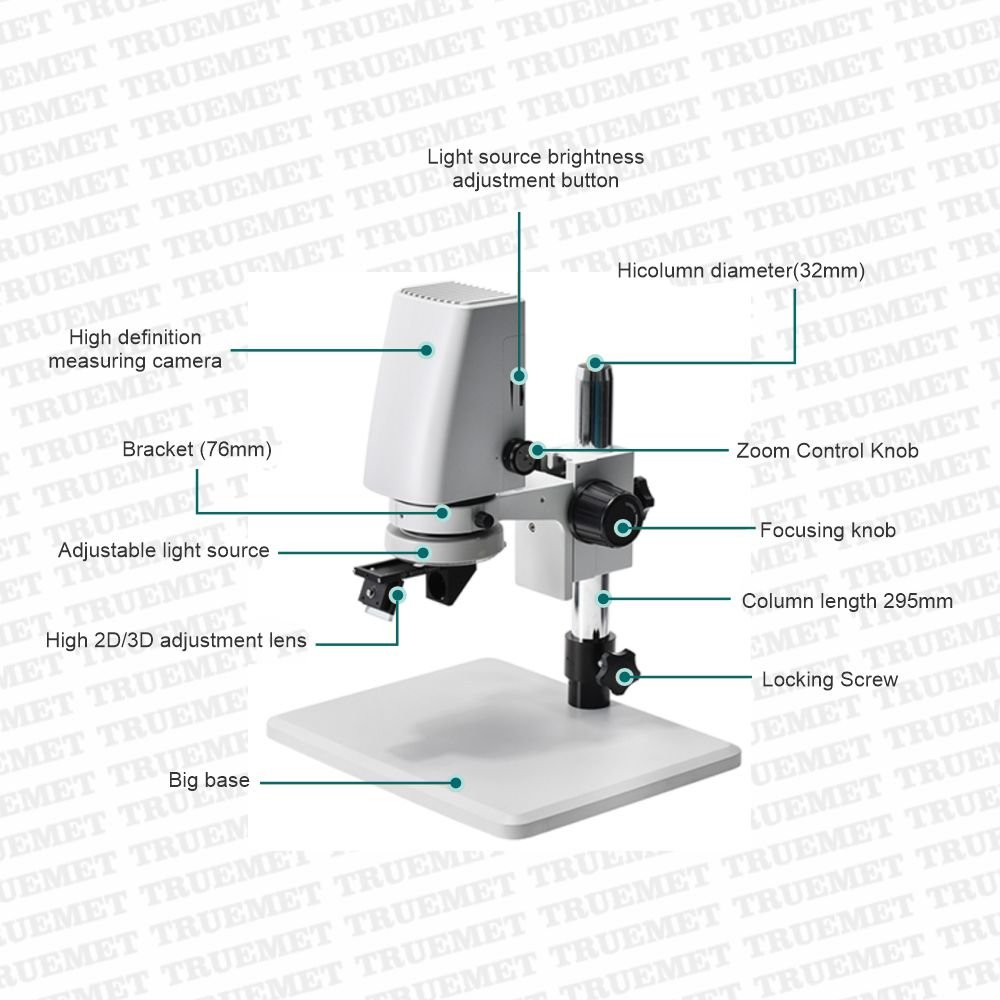

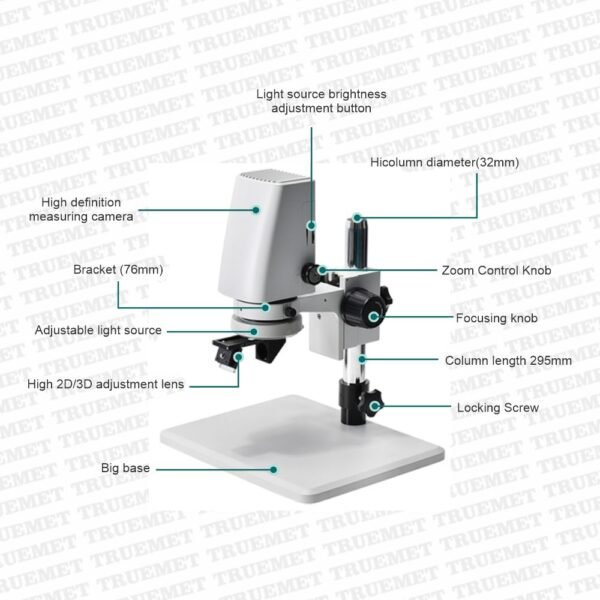

Features:
- An all-in-one digital inspection system for industrial and laboratory use, complete with high-definition imaging, a large 11.6” screen, and a 144-LED ring light.

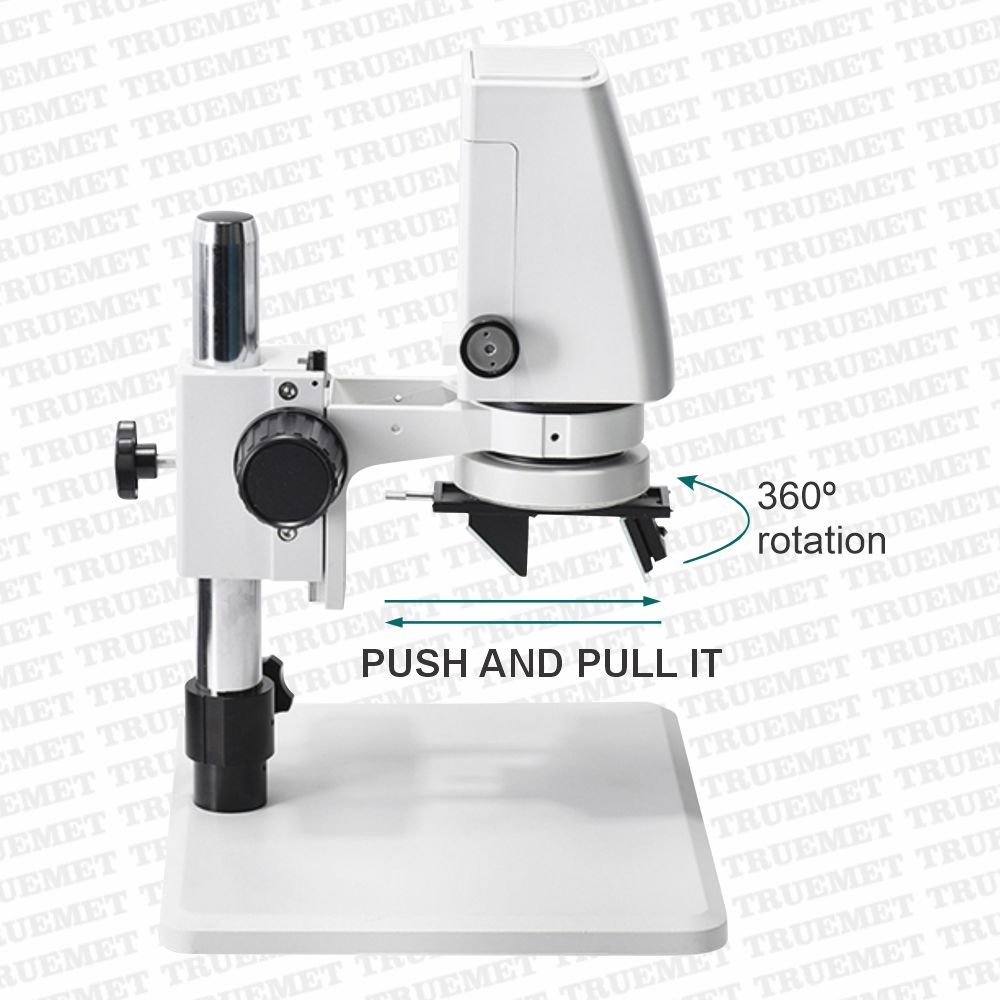

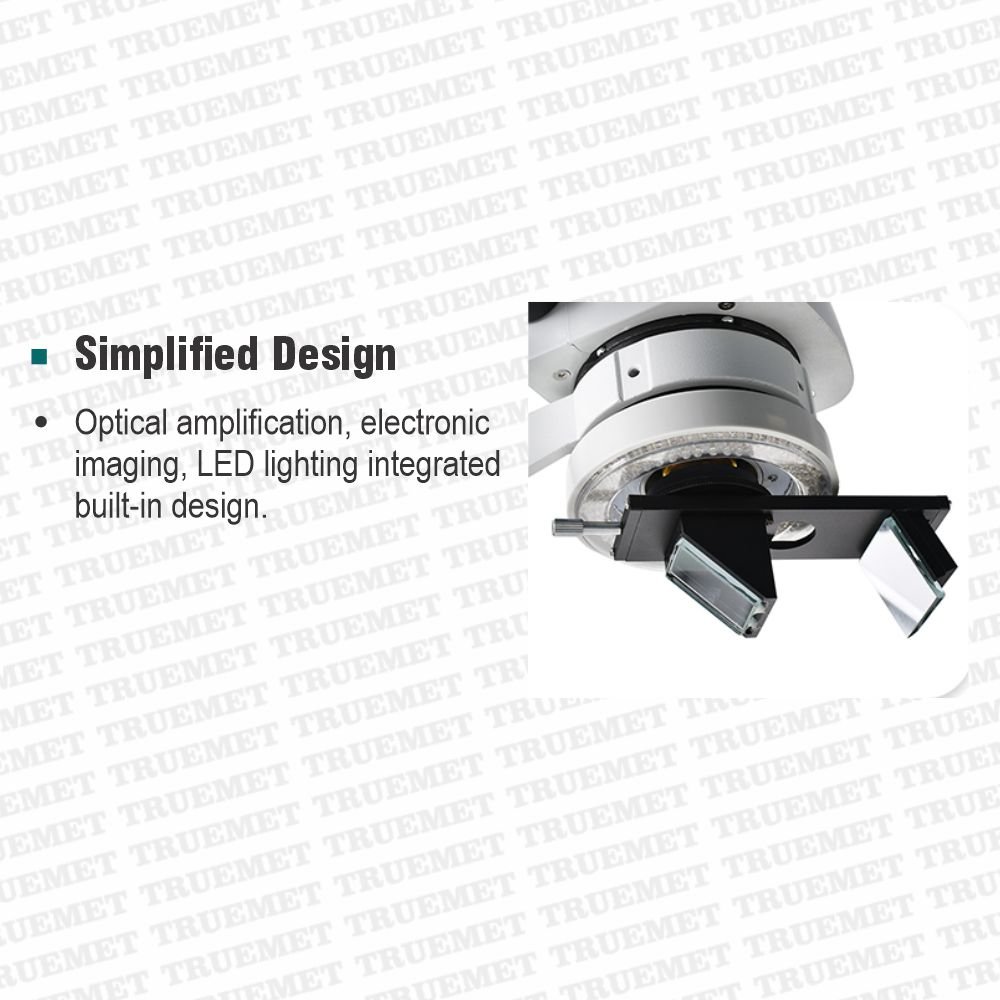

- Includes a unique 3D rotary attachment which allows you to view object from various angles.
- 0.7X-5X zoom magnification is ideal for dissection, soldering, and general inspection, and detents at key magnifications ensure ease and consistency.
- Real-time, high-definition images are displayed on the 11.6” screen with superb clarity and accurate colors.

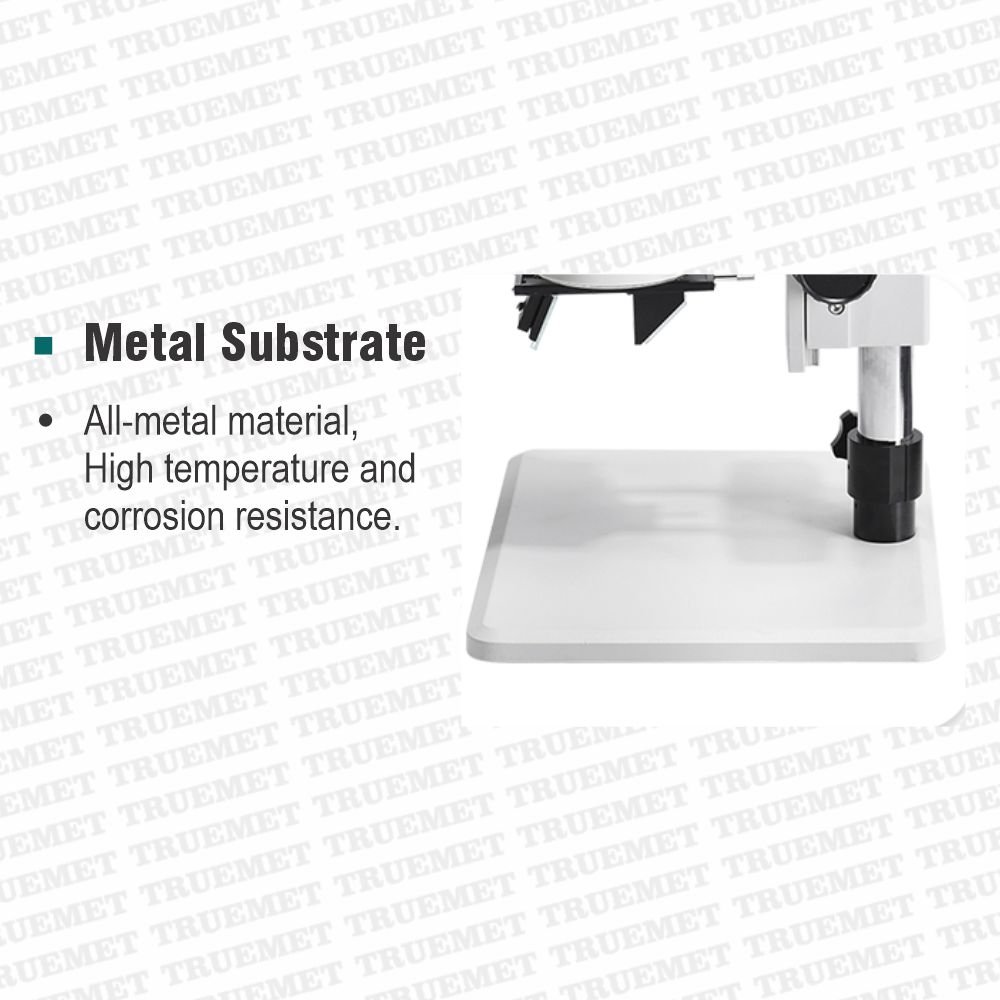

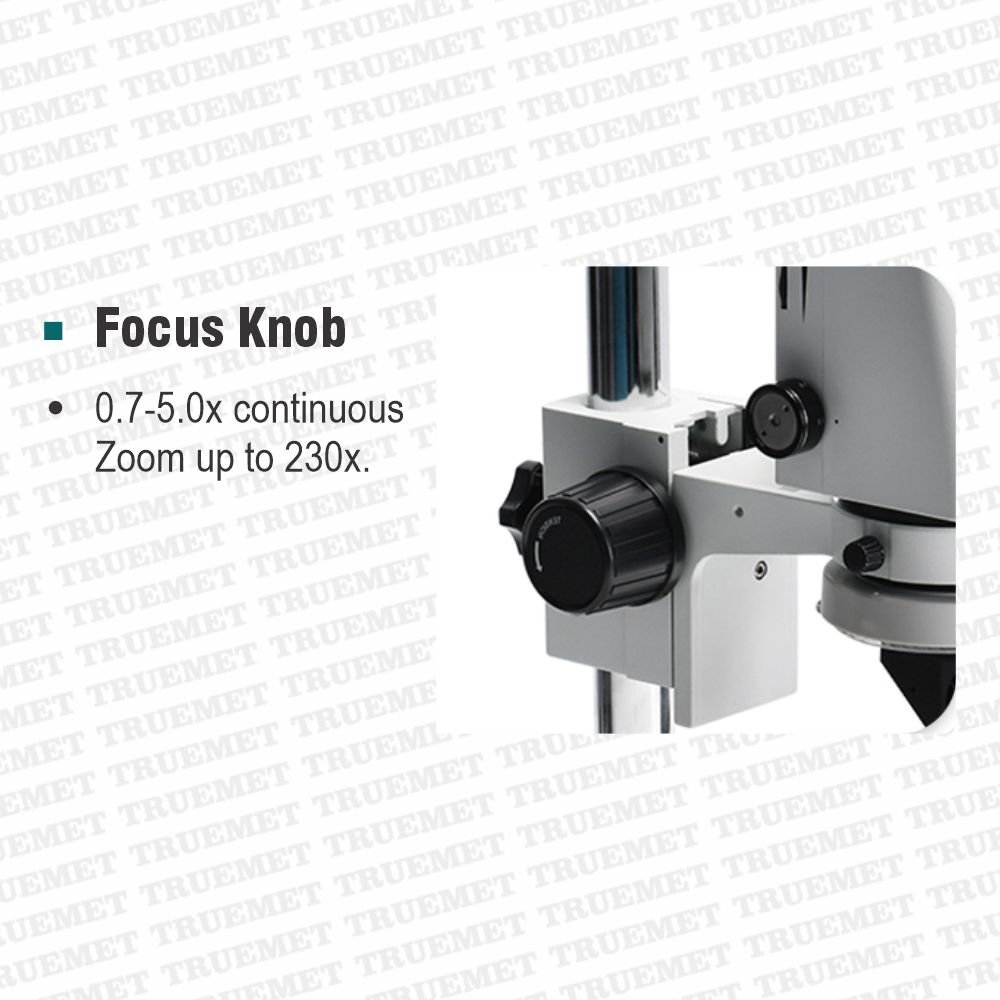

- The large base provides stability as well as an ample work surface, while symmetrical focusing knobs provide a large travel range to suit various objects.

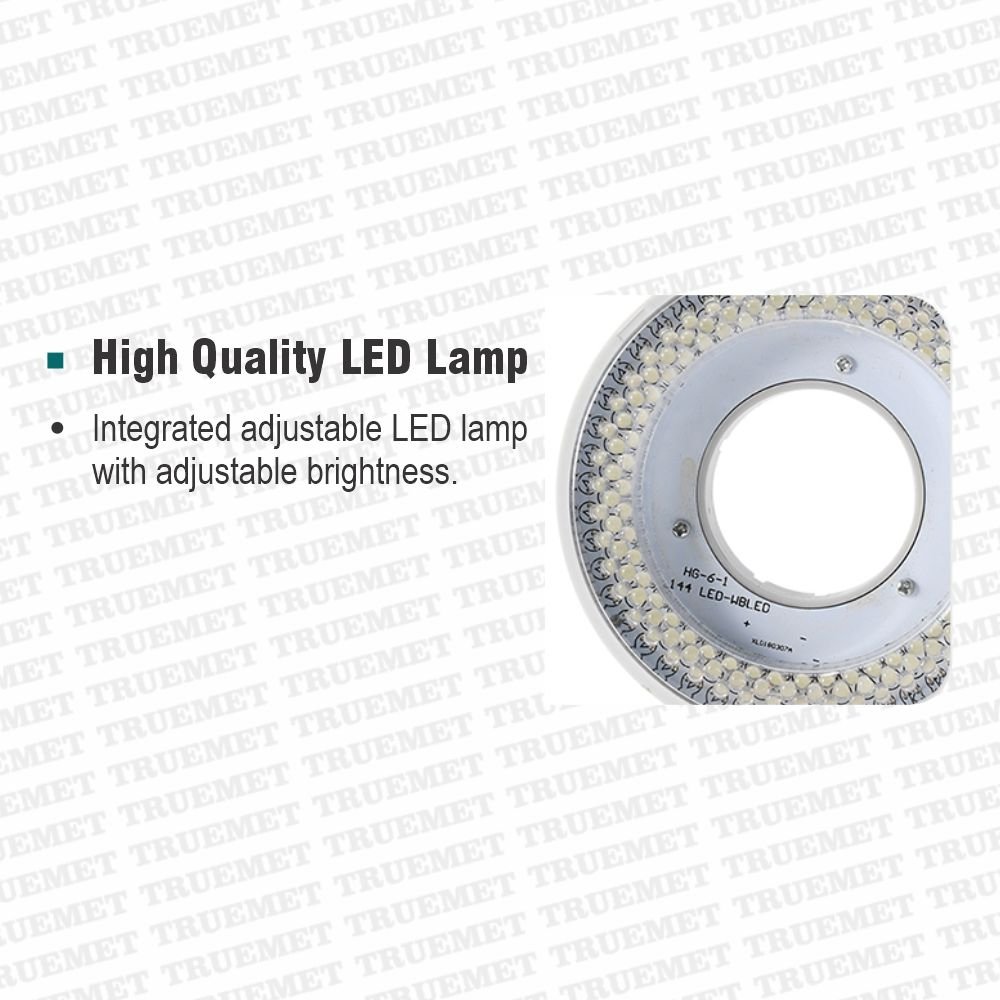

- A 144-LED ring-light can be quickly attached or detached as needed, and illuminates subjects with low-heat, daylight-balanced light.
