| MODEL | TEST FORCE(KGF) | MAGNIFICATION |
| THT-10D | 0.1, 0.2, 0.3, 0.5,1, 2, 2.5, 3, 5, 10 | 400X (for measurement) & 100X (for observation) |
| THT-30D | 0.2, 0.3, 0.5,1, 2, 2.5, 3, 5, 10, 20, 30 | 200X (for measurement) & 100X (for observation) |
| THT-50D | 0.3, 0.5,1, 2, 2.5, 3, 5, 10, 20, 30, 50 | 200X (for measurement) & 100X (for observation) |
| THT-100D | 1, 2, 2.5, 3, 5, 10, 20, 30, 50, 100 | 200X (for measurement) & 50X (for observation) |

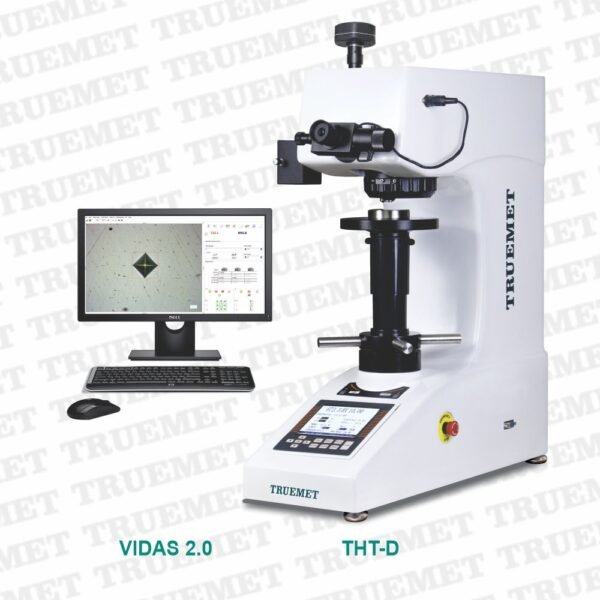

Computerized Load Cell Based Digital Vickers Hardness Tester | THT-D Series-V2
Computerized Load Cell Based Digital Vickers Hardness Tester | THT-D Series-V2
Features:
-
- DIGITAL EYEPIECE : Equipped with 10x Digital Eyepiece to directly measure the length of the diagonal. The hardness value can be displayed directly and there is no need to enter the length of the diagonal.
- ILLUMINATION SYSTEM : Halogen illumination unit gives very clear images and can be also used as a simple microscope. Halogen illumination unit enter stand by mode after a certain period of inactivity which gives it a long service life and low power consumption.
- DATA OUTPUT : Equipped with built is thermal printer to take the print out the hardness result.
- CAMERA PORT : Machine equipped with dual optical channel, one optical channel for 10X eyepiece and another optical channel is for camera by which machine can be upgraded into computerized model. Both optical channel works simultaneously.
- TEST FORCE : All the test force is applied by load cell. The high quality load sensing system can do a wide-range of vickers test by one load cell.
- TURRET MECHANISM : Equipped with manual turret mechanism. The position of the indentor and objective lens can be switched manually.
- LARGE LCD SCREEN PANEL : 75X100 mm LCD screen can visually display the hardness value, conversion hardness, test force, dwell time, upper & lower limit, max-min, and average value.
- EMERGENCY SWITCH : Equipped with emergency stop switch.
| MODEL | THT-D Series + VIDAS 2.0 |
| Turret Movement | Manual |
| Measuring Eyepiece | 10X Manual Eyepiece |
| Display | 75X100mm LCD screen |
| Hardness Conversion Scale | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HBW, HK (as per ASTM & ISO standard) |
| Hardness Range | 1~4500 HV |
| Optical Channel | Dual Light Channel (Eyepiece and Camera Channel) |
| Dwell Time | 1~99 sec |
| Loading Control | Automatic (Loading, Dwell, Unloading) |
| Max. height of specimens (approx) | 165mm |
| Max. depth of specimens (approx) | 130mm |
| Light Source | Halogen Bulb (with adjustable intensity) |
| Data Output | Built-in-Printer, Built in RS-232 interface |
| Carried Standard | ASTM-E384 & E92, ISO 6507, IS 1501 |
| Overall Dimension (approx) | 585X200X630 mm (L X W X H) |
| Net weight (approx) | 42Kg |
| Power Supply | AC220V±5% 50-60Hz |
| Standard Accessories | Vickers Indentor 1 No. 10X Digital Eyepiece 1 No. Objective 10X 1 No. Objective 40X or 20X 1 No. Flat testing table (50mm diameter) 1 No. V testing table (60mm diameter) 1 No. Hardness Test Block 2 Nos. Allen Keys 1 No. Leveling Adjusting Screw 4 Nos. Power Cord 1 No. Screw Driver 1 No. Dust Cover 1 No. Leveling Bubble 1 No. Accessory case 1 No. Instruction Manual 1 No. |
| VIDAS 2.0 Kit | TRUEMET VIDAS-Vickers Impression Diagonal Analysis System, 5 MP USB Camera & Camera Adaptor. |
| Optional Accessories | Knoop Indentor, Knoop Hardness Block, Manual XY Table, Digital XY table, SPC Cable. |
