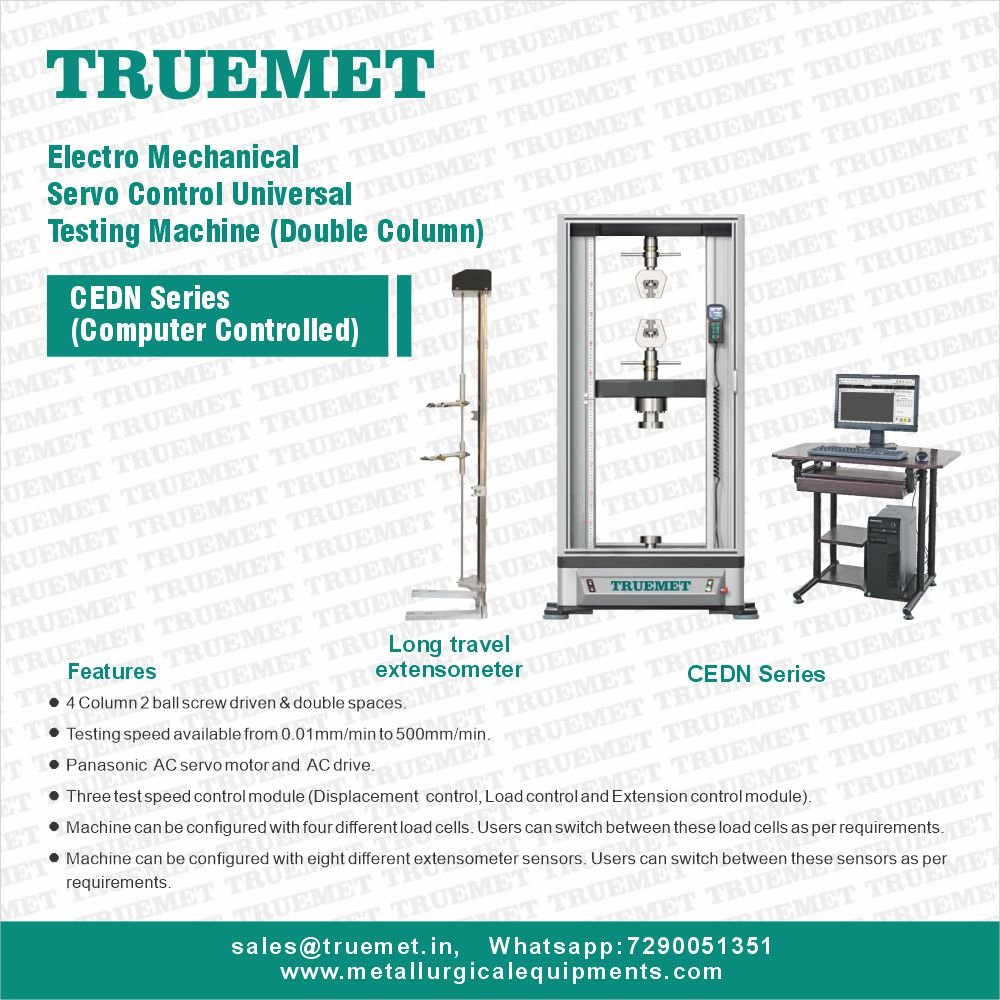

Electro Mechanical Servo Control Universal Testing Machine (Double Column) | CEDN Series

Features:

	MODELS	CEDN-50	CEDN-100
Force Measurement	Max Load Capacity	50KN	100KN
	Accuracy	± 0.5% of the reading from 0.2% to 100%
	Resolution	1/100000 counts optional
	Calibration	Pre calibrated loadcell (max 4 nos) can be interchanged without further calibration
Structure	Type	4 Column 2 ball screw driven & double spaces
	Max. tensile test space (approx)	770mm	650mm
	Max. compression test space (approx)	1000mm	1000mm
	Effective test width (approx)	450mm	550mm
Crosshead	Resolution	0.01mm	0.01mm
	Speed Range (stepless in mm/min)	0.01 – 1000	0.01 – 500
	Return Speed (stepless in mm/min)	0.01 – 1000	0.01 – 500
	Crosshead speed Accuracy	± 1%
	Crosshead position adjustment	Both from software and digital remote controller
Safety Protection	Over travel protection	Over travel safety by fixed and adjustable limit switches at both ends
	Overload Protection	By system setting
	Emergency Stop	By emergency push button
	Standard Accessories	Load Cell 1 No. Compression Plate 1 No. Safety door 1 No. Control Connecting Cable 1 No. Power Cable 1 No. Instruction Manual 1 No.
	Dimension (LxWxH) in mm approx	840x570x1850	950x660x2000
	Weight approx	420kg	680kg
	Power Requirement	AC220V±10%, 50Hz
	Optional Accessories	Computer, Extensometers, Long travel extensometers, Bending fixtures, Vice and Flat type grips, Computer system special attachments and Fixtures
